Pinpoint Test C: All DIMMABLE Switch Illumination Is Inoperative

NOTE: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.
  1. C1 CHECK FOR RECORDED SJB DTCs FROM THE ON-DEMAND SELF-TEST
    • Use the recorded results from the SJB  self-test.
    • Is DTC B2A32 present?
    • Yes:  Go to C2  .
    • No:  VERIFY the SJB  fuse 10 (15A) is OK. If OK, go to C2  .

      If not OK, refer to the appropriate SYSTEM WIRING DIAGRAMS article to identify the possible causes of the circuit short. After the repair:

      If no DTCs are present, TEST the system for normal operation.

      If DTC B106E is present, CLEAR the DTCs and  REPEAT the self-test (required to enable the backlighting output driver if DTC B106E is present)  . TEST the system for normal operation.

      If DTC B106F is present, INSTALL a new SJB  . Refer to MULTIFUNCTION ELECTRONIC MODULE . TEST the system for normal operation.

  2. C2 BYPASS THE SJB
    NOTE: If the jumper wire fails, refer to the appropriate SYSTEM WIRING DIAGRAMS article to identify the possible causes of the circuit short. After the repair:

    If no DTCs are present, test the system for normal operation.

    If DTC B106E is present, clear the DTCs and  repeat the self-test (required to enable the backlighting output driver if DTC B106E is present)  . Test the system for normal operation.

    If DTC B106F is present, install a new SJB  . Refer to MULTIFUNCTION ELECTRONIC MODULE . Test the system for normal operation.

    • Ignition OFF.
    • Disconnect: SJB  C2280b.
    • Connect a fused jumper wire between the SJB  C2280b-39, circuit VLN04 (VT/GY) and battery positive.

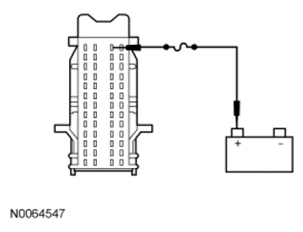

      Fig 1: Connecting Fused Jumper Wire Between SJB C2280B-39, Circuit VLN04 (VT/GY) And Battery Positive
      G07465622Courtesy of FORD MOTOR CO.
    • Do the backlighting components illuminate?
    • Yes:  REMOVE the jumper wire. Go to C3  .
    • No:  REMOVE the jumper wire. REPAIR circuit VLN04 (VT/GY) for an open. CLEAR the DTCs. REPEAT the self-test.
  3. C3 CHECK FOR CORRECT SJB OPERATION
    • Disconnect all the SJB  connectors.
    • Check for:
      • corrosion
      • damaged pins
      • pushed-out pins
    • Connect all the SJB  connectors and make sure they seat correctly.
    • Operate the system and verify the concern is still present.
    • Is the concern still present?
    • Yes:  INSTALL a new SJB  . Refer to MULTIFUNCTION ELECTRONIC MODULE . TEST the system for normal operation.
    • No:  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.
