Instrument Cluster (IC): Notes

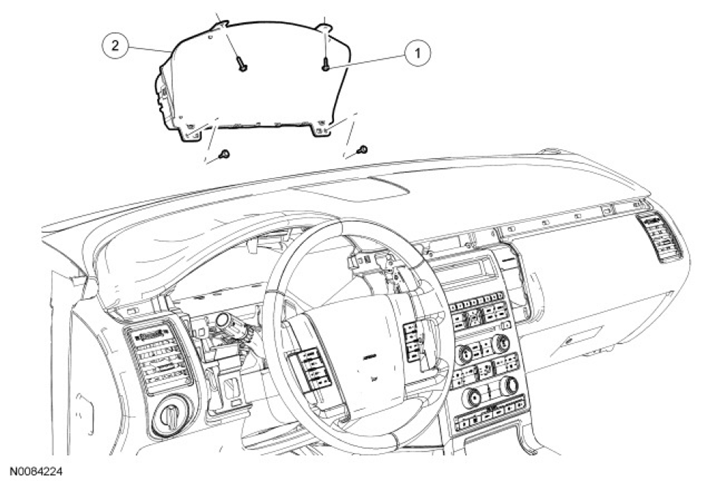

Fig 1: Exploded View Of Instrument Cluster (IC)
G07465684Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W707628 Instrument Cluster (IC) screws (4 required)
2 10849 IC
