Removal and Installation

  1. Remove the Instrument Cluster (IC). For additional information, refer to INSTRUMENT CLUSTER (IC)  in this information.
  2. Release the retaining tabs and remove the IC  lens.

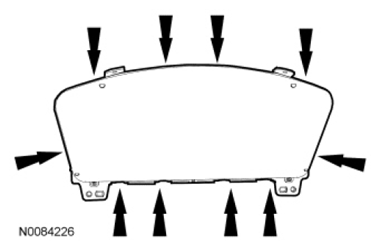

    Fig 1: Locating IC Lens Retaining Tabs
    G07465686Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
