Instrument Cluster (IC): Notes

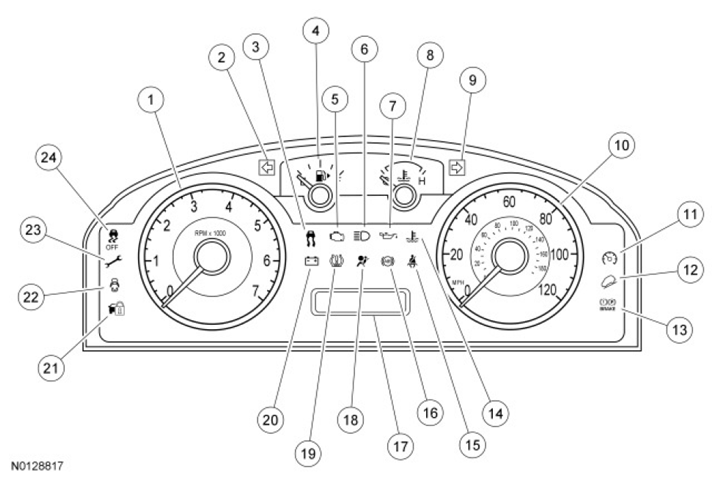

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Tachometer |
| 2 | - | LH turn indicator |
| 3 | - | Stabilty/traction control indicator (sliding car icon) |
| 4 | - | Fuel gauge |
| 5 | - | Malfunction Indicator Lamp (MIL) |
| 6 | - | High beam indicator |
| 7 | - | Low engine oil pressure warning indicator |
| 8 | - | Engine temperature gauge |
| 9 | - | RH turn indicator |
| 10 | - | Speedometer |
| 11 | - | Cruise control indicator |
| 12 | - | Grade assist indicator |
| 13 | - | Brake warning indicator |
| 14 | - | Engine over-temperature warning indicator |
| 15 | - | Safety belt warning indicator |
| 16 | - | ABS warning indicator |
| 17 | - | Message center display area |
| 18 | - | Air bag warning indicator |
| 19 | - | Tire Pressure Monitoring System (TPMS) warning indicator |
| 20 | - | Charging system warning indicator |
| 21 | - | Anti-theft indicator |
| 22 | - | Door ajar warning indicator |
| 23 | - | Powertrain malfunction (wrench) warning indicator |
| 24 | - | Stability/traction control off indicator (sliding car OFF icon) |
NOTE:
The Smart Junction Box (SJB) is also known as the Generic Electronic Module (GEM).
The Instrument Cluster (IC) is available with a full-function message center (identified by the 3-button message center switch). The IC contains gauges, informational indicators, warning indicators and a message center that are designed to provide the driver with system status and to alert the driver that certain conditions exist in the vehicle.
The IC displays basic informational items such as the odometer, trip odometer and warning messages in the message center display area.
