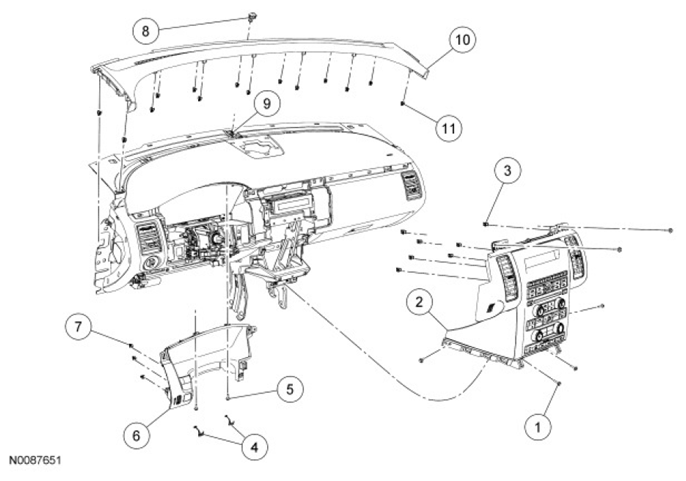

Instrument Panel and Instrument Cluster Finish Panels
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Center instrument panel finish panel screw (6 required) |
| 2 | 04302 | Center instrument panel finish panel |
| 3 | W712210 | Center instrument panel finish panel retaining clip (7 required) |
| 4 | - | Instrument cluster finish panel screw covers (part of 044D70) |
| 5 | W707628 | Instrument cluster finish panel screw (3 required) |
| 6 | 044D70 | Instrument cluster finish panel |
| 7 | W712210 | Instrument cluster finish panel retaining clip (3 required) |
| 8 | 13A018 | Light sensor |
| 9 | - | Light sensor electrical connector (part of 14401) |
| 10 | 044E82 | Instrument panel defroster grille |
| 11 | W712210 | Instrument panel defroster grille retaining clip (14 required) |
