Seat Belt Buckle Switch
>>
Diagrams
>>

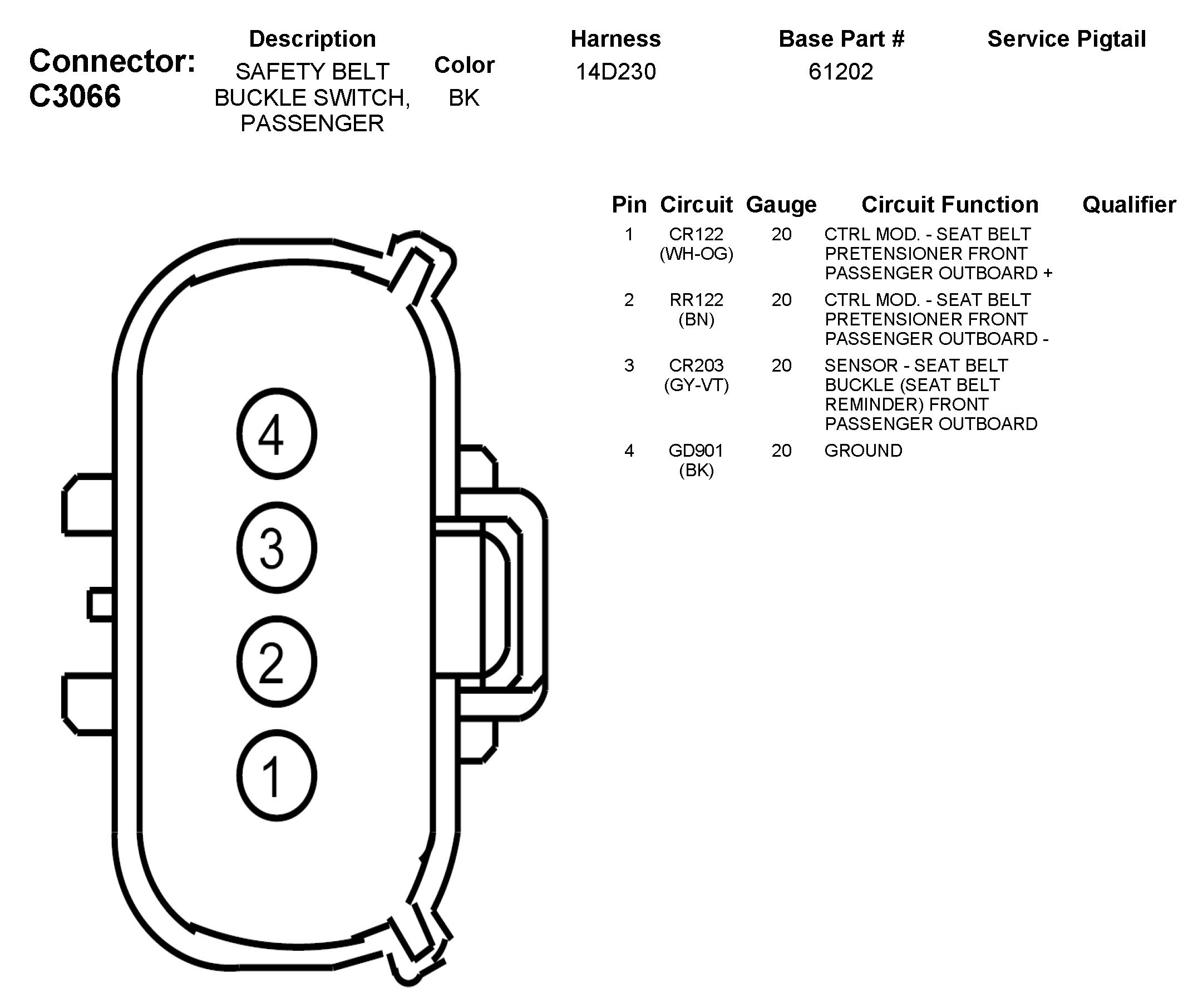

C3066 Safety Belt Buckle Switch, Passenger
C3066 Safety Belt Buckle Switch, Passenger
