Radiator Grille

Radiator Grille

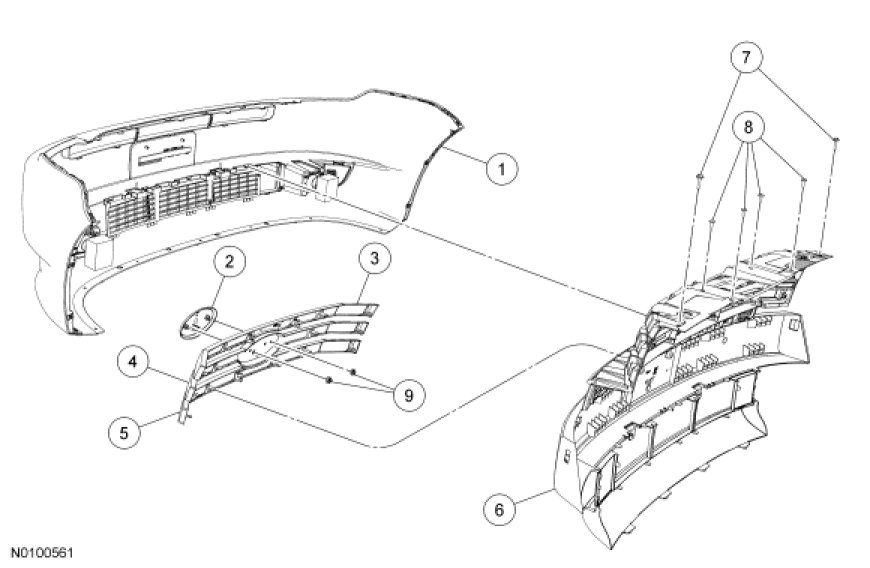

Removal and Installation

All grilles

1. Remove the front bumper cover. For additional information, refer to Bumpers Service and Repair.

Center grille only

2. Remove the emblem retainers and remove the emblem.

All grilles

3. Remove the radiator grille reinforcement.

4. Release the radiator grille from the radiator grille reinforcement.

5. To install, reverse the removal procedure.
