Removal and Replacement

Liftgate Latch

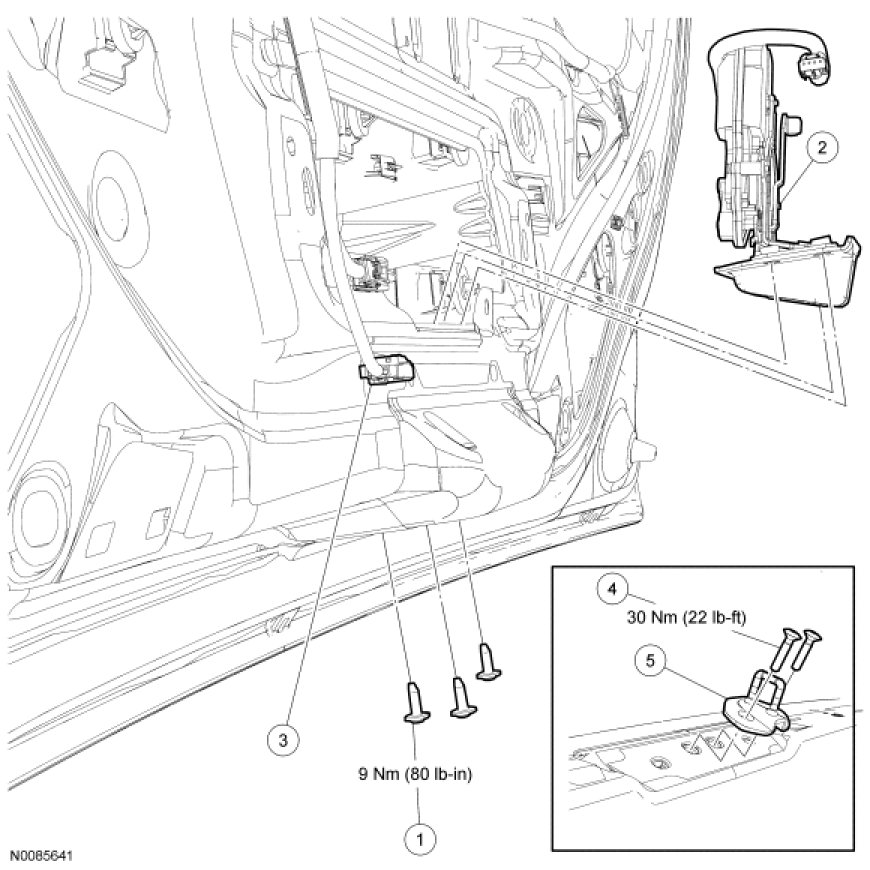

Manual Liftgate

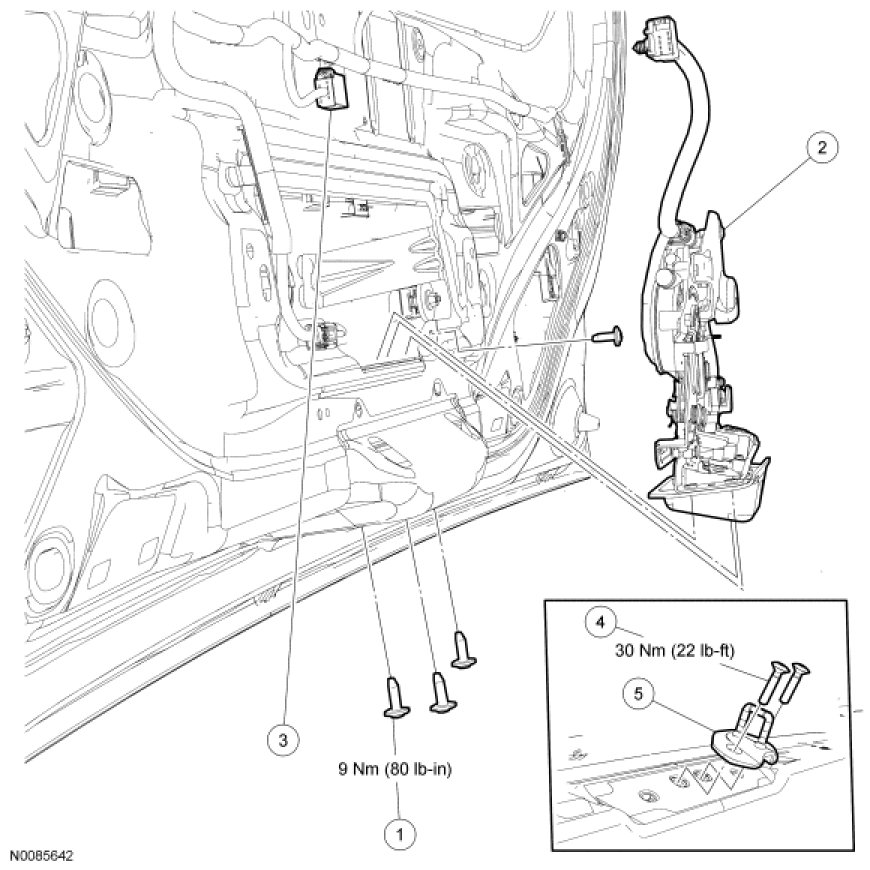

Power Liftgate









Removal and Installation

1. Remove the liftgate trim panel. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

2. Disconnect the liftgate latch electrical connector.

3. Remove the 3 (manual) or 4 (power) liftgate latch bolts and the liftgate latch.
- To install, tighten to 9 Nm (80 lb-in).

4. If necessary, remove the 2 bolts and the liftgate latch striker.
- To install, tighten to 30 Nm (22 lb-ft).

5. To install, reverse the removal procedure.
