Rear Vision Camera: Service and Repair

Video Camera

















Removal and Installation

1. Remove the liftgate trim panel.

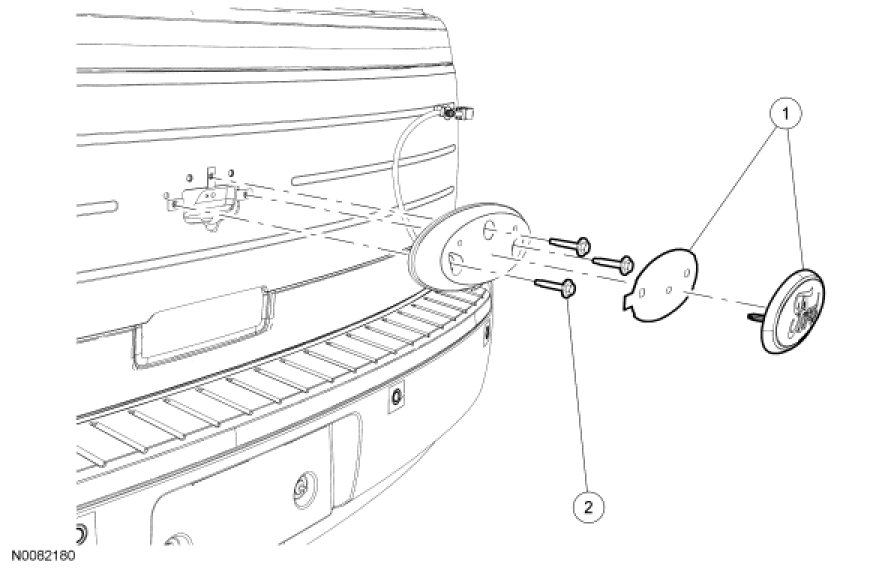

2. Remove the Ford oval emblem by carefully prying the emblem away from the emblem bezel with a suitable pry tool.

3. Remove the 3 Ford oval emblem bezel bolts.

4. Remove the Ford emblem bezel from the tailgate.
- Disconnect the electrical connector.

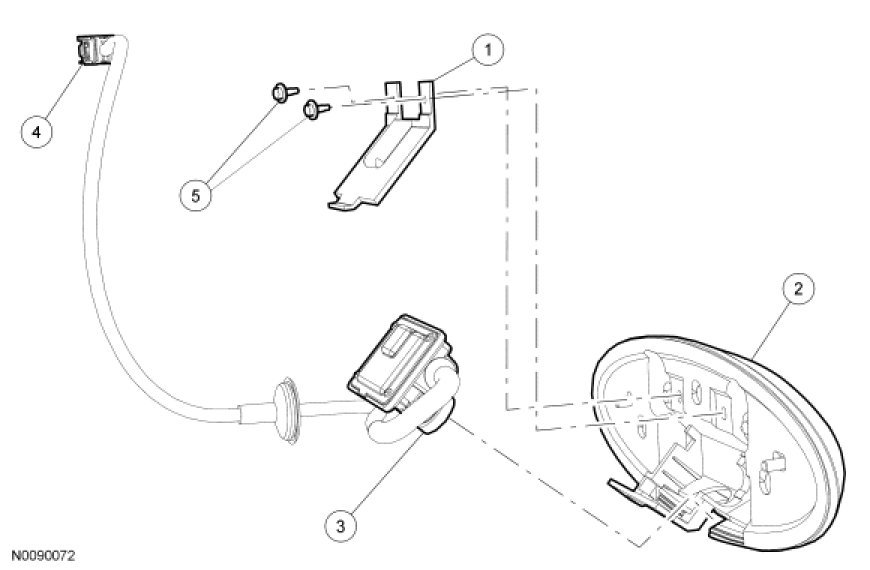

5. Remove the video camera cover.

6. Remove the video camera.

7. To install, reverse the removal procedure.
