Wiper Motor - Rear Window

Wiper Motor - Rear Window

Removal and Installation

1. Remove the rear wiper pivot arm. For additional information, refer to Wiper Pivot Arm - Rear Wiper Pivot Arm - Rear.

2. Remove the liftgate trim panel. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

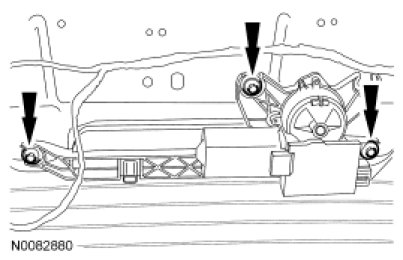

3. Remove the 3 rear window wiper motor assembly bolts.
- To install, tighten to 8 Nm (71 lb-in).





4. Remove the rear window wiper motor assembly.
- Disconnect the electrical connectors.

5. To install, reverse the removal procedure.
