Wiper Pivot Arm - Rear

Wiper Pivot Arm - Rear

Removal and Installation

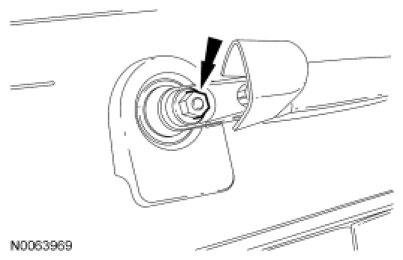

1. Open the wiper pivot arm nut cover.





2. Remove the wiper pivot arm nut.
- To install, tighten to 15 Nm (133 lb-in).





3. NOTE: A suitable 2 jaw puller may be necessary to remove the wiper pivot arm.

Remove the wiper pivot arm.

4. To install, reverse the removal procedure.
