Wiper Pivot Arm - Front

Wiper Pivot Arm - Front

Removal and Installation

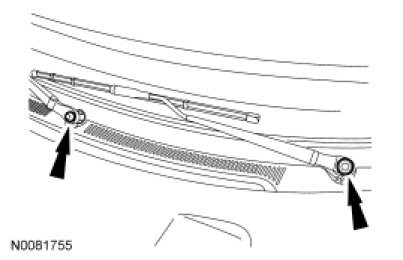

1. Remove the wiper pivot arm nut cover.





2. NOTE: A suitable 2 jaw puller may be necessary to remove the wiper pivot arm.

Remove the nut and the wiper pivot arm.

- To install, tighten to 25 Nm (18 lb-ft).





3. To install, reverse the removal procedure.
- Adjust the wiper pivot arms. For additional information, refer to Wiper Blade and Pivot Arm Adjustment - Windshield Adjustments.
