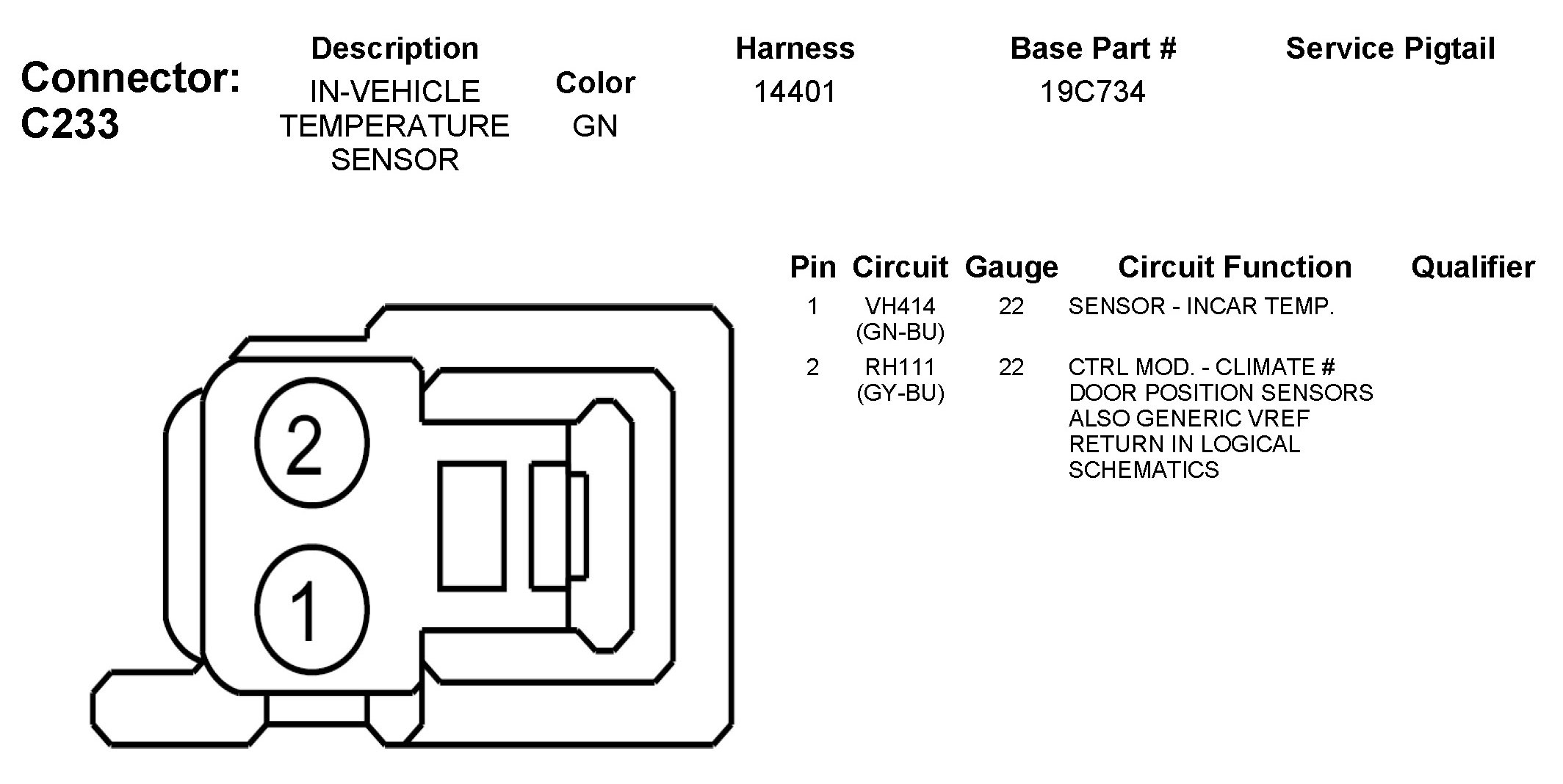

Home >> Ford >> 2011 >> Flex AWD V6-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Cabin Temperature Sensor / Switch >> Diagrams >> C233 In-Vehicle Temperature Sensor
