Seat Control Switch - Second Row, Power-Fold

Seat Control Switch - Second Row, Power-Fold

Removal and Installation

1. NOTE: RH side shown.

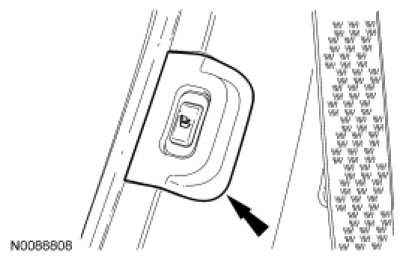

Separate the weather strip, pull out on the second row seat control switch bezel and separate from the quarter trim panel.

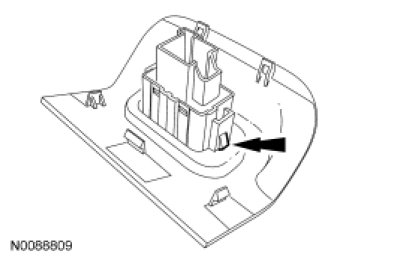

2. Disconnect the second row seat control switch, release the retainers (1 shown) and remove the third row seat control switch.





3. To install, reverse the removal procedure.
