Headlamp Switch: Service and Repair

Headlamp Switch

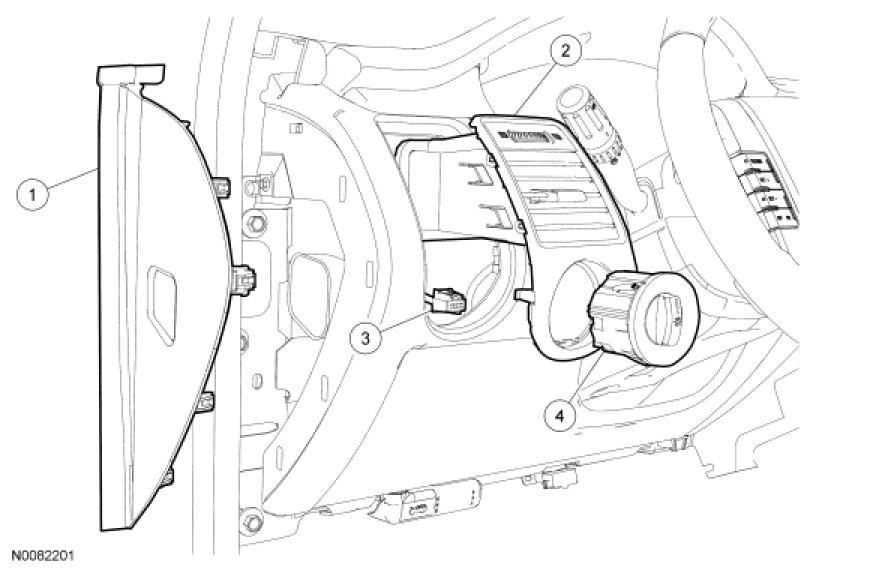

Removal and Installation

1. Remove the instrument panel side finish panel.

2. Unsnap the LH register from the instrument panel and remove it.
- Disconnect the electrical connector.

3. Release the tabs and remove the headlamp switch.

4. To install, reverse the removal procedure.
