Hazard Warning Switch: Service and Repair

Hazard Flasher Lamp Switch









Removal and Installation

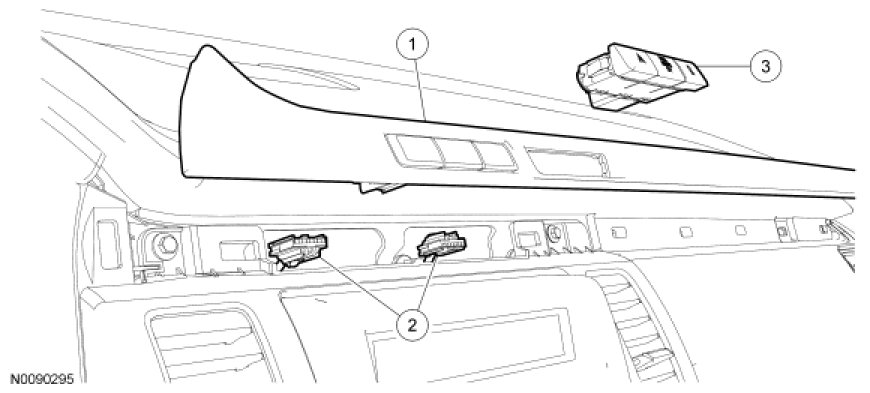

1. NOTE: Pulling the instrument panel center moulding rearward releases the retaining clips.

Remove the instrument panel center moulding from the instrument panel.

- Disconnect the electrical connectors.

2. Release the tabs and remove the hazard flasher lamp switch.

3. To install, reverse the removal procedure.
