Parking Assist Switch: Service and Repair

Active Park Assist Switch

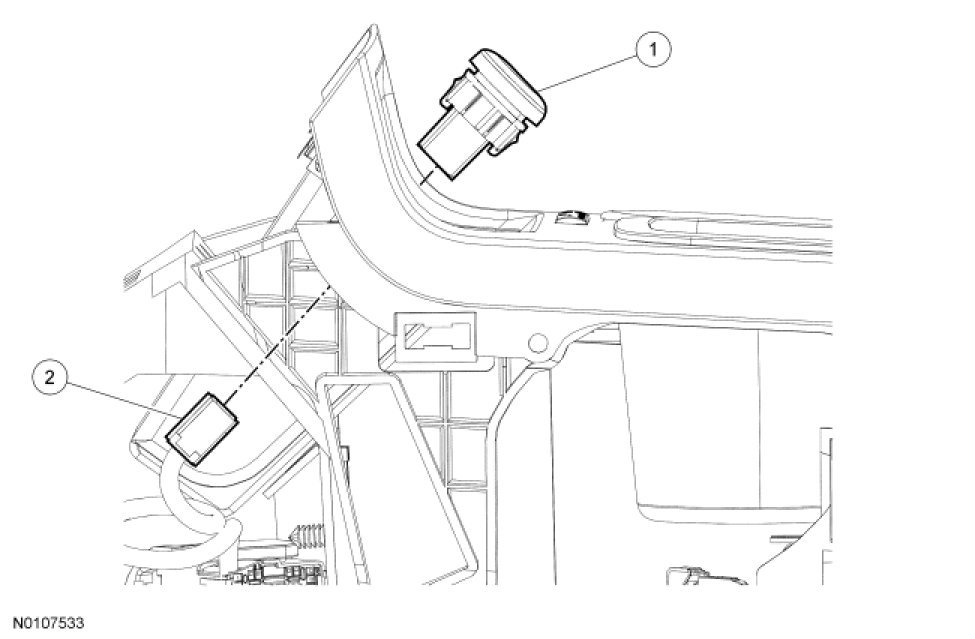

Removal and Installation

1. Remove the floor console trim panel. For additional information, refer to Console - Floor in Instrument Panel and Console Floor Console.

2. Disconnect the electrical connector.

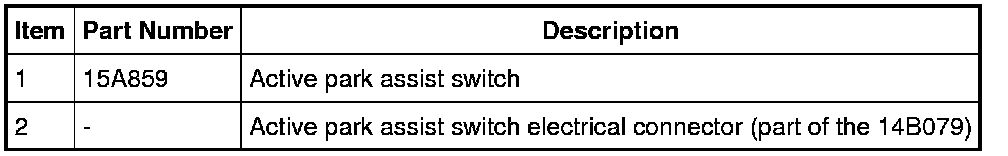

3. Release the retaining tabs and remove the active park assist switch from the floor console.

4. To install, reverse the removal procedure.
