Brake Booster: Notes

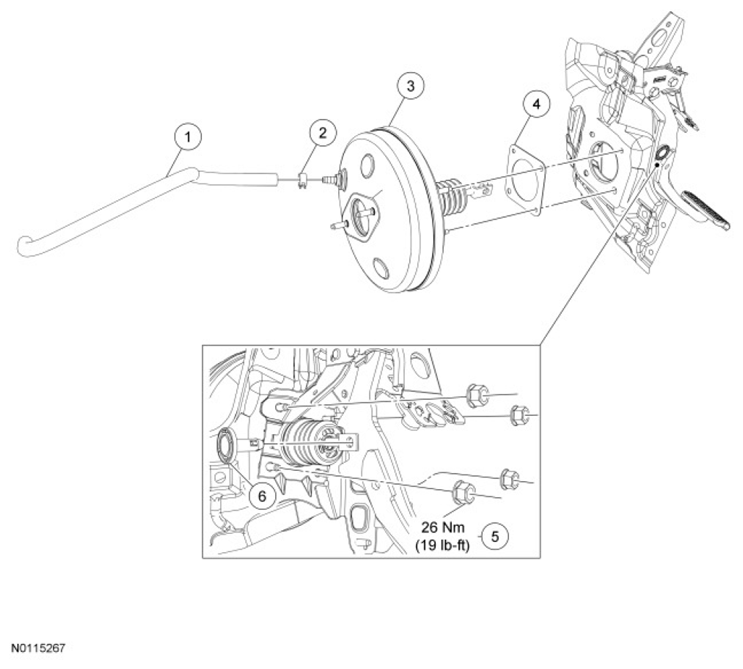

Fig 1: Brake Booster Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	9C490	Vacuum hose
2	-	Spring clamp (part of 9C490)
3	2B195	Brake booster
4	2M078	Brake booster seal
5	W706840	Brake booster nut (4 required)
6	2L523	Brake booster push rod clevis locking pin
