Selector Lever Knob: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the selector lever trim ring.

Fig 1: Locating Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
Remove the upper console panel.

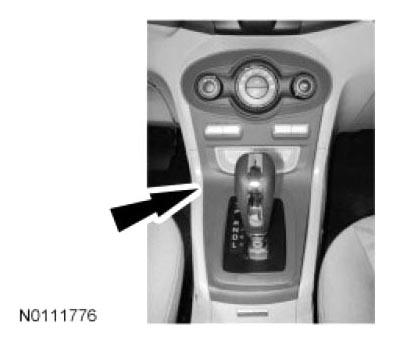

Fig 2: Locating Upper Console Panel
Courtesy of FORD MOTOR CO.
Slide the selector lever knob bezel downward.

Fig 3: Sliding Selector Lever Knob Bezel Downward
Courtesy of FORD MOTOR CO.
Remove and discard the 2 selector lever knob screws.

Fig 4: Locating Selector Lever Knob Screws
Courtesy of FORD MOTOR CO.
Remove the center console LH panel.

Fig 5: Locating Center Console LH Panel
Courtesy of FORD MOTOR CO.
Disconnect the Transmission Control Switch (TCS) electrical connector and remove the wiring harness fastener from the selector lever housing.

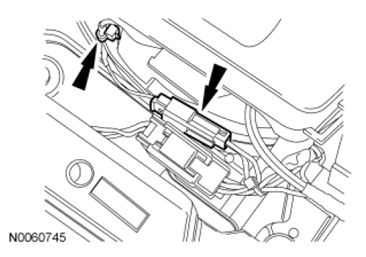

Fig 6: Locating Transmission Control Switch (TCS) Electrical Connector And Wiring Harness Fastener
Courtesy of FORD MOTOR CO.
Remove the selector lever knob.
