Selector Lever Knob: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not overtighten the selector lever knob screws or damage to the selector lever or selector lever knob may occur.

Install the selector lever knob and the 2 new selector lever knob screws.
- Tighten to 2 Nm (18 lb-in).

  Fig 1: Locating Selector Lever Knob Screws
  Courtesy of FORD MOTOR CO.
Slide the selector lever knob bezel up and into place.

Fig 2: Sliding Selector Lever Knob Bezel Upwards
Courtesy of FORD MOTOR CO.

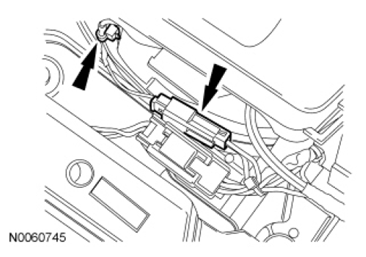

Connect the TCS electrical connector and install the wiring harness fastener to the selector lever housing.

Fig 3: Locating Transmission Control Switch (TCS) Electrical Connector And Wiring Harness Fastener
Courtesy of FORD MOTOR CO.

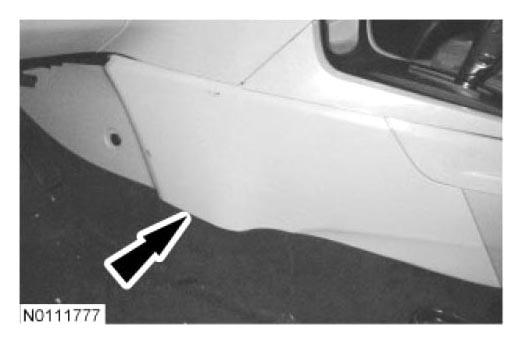

Install the center console LH panel.

Fig 4: Locating Center Console LH Panel
Courtesy of FORD MOTOR CO.

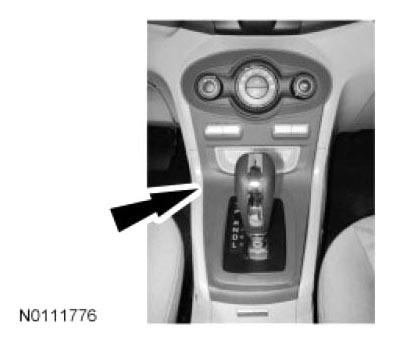

Install the upper console panel.

Fig 5: Locating Upper Console Panel
Courtesy of FORD MOTOR CO.

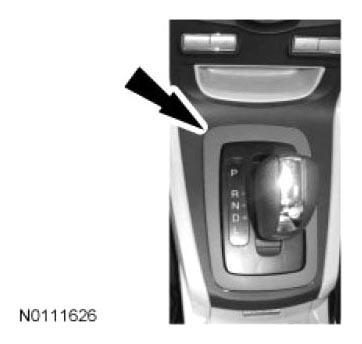

Install the selector lever trim ring.

Fig 6: Locating Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
Verify the selector lever knob functions correctly.
