Special Tool(s)

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOL REFERENCE CHART

Courtesy of FORD MOTOR CO.

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

Disconnect the selector lever cable end from the manual control lever.

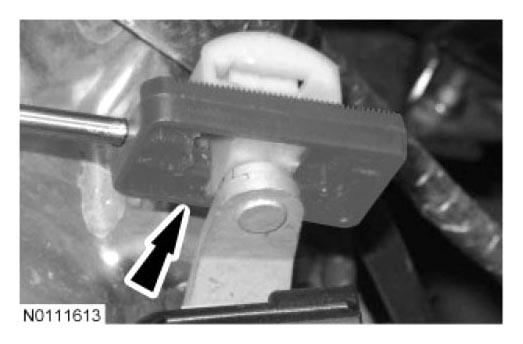

Fig 1: Disconnecting Selector Lever Cable End From Manual Control Lever
Courtesy of FORD MOTOR CO.
Place the manual control lever in the D position as indicated on the transaxle case.
Place the manual control lever in the P position as indicated on the transaxle case.
Place the manual control lever in the D position as indicated on the transaxle case.
Place the selector lever in the D position.

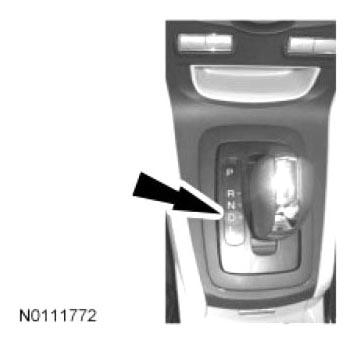

Fig 2: Locating Selector Lever In D Position
Courtesy of FORD MOTOR CO.
Unlock the selector lever cable adjuster by sliding the locking tab over.

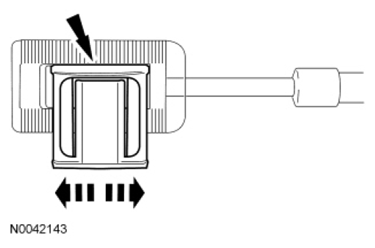

Fig 3: Unlocking Selector Lever Cable Adjuster
Courtesy of FORD MOTOR CO.
Slide the selector lever cable end forward or backward to align it with the manual control lever.

Fig 4: Sliding Selector Lever Cable End Forward Or Backward
Courtesy of FORD MOTOR CO.
With the selector lever cable adjuster locking tab released, connect the selector lever cable end to the manual control lever.

Fig 5: Connecting Selector Lever Cable End To Manual Control Lever
Courtesy of FORD MOTOR CO.
Slide the locking tab back to lock the selector lever cable adjuster.

Fig 6: Sliding Locking Tab To Lock Selector Lever Cable Adjuster
Courtesy of FORD MOTOR CO.
Verify that the vehicle only starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE.
