Selector Lever Harness C3245 (Vehicle Harness Side)
WARNING: This page is about a different variant/trim than selected.

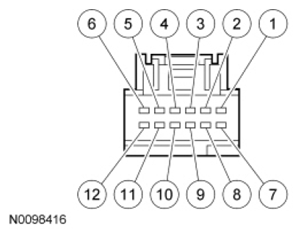

ELECTRIC CONNECTOR PIN NUMBER REFERENCE CHART
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | CCA26 (BU/GY) | Brake Shift Interlock Actuator (BSIA) solenoid power circuit |
| 2 | CDC41 (WH/BN) | Park position signal to ignition switch |
| 3 | - | Park position signal to Instrument Cluster (IC) |
| 4 | CLN04 (BU/BN) | Power to PRNDL LED Illumination |
| 5 | GD115 (BK/GY) | Ground |
| 6 | CBP22 (GN/OG) | Transmission Control Switch (TCS)/Grade Assist button power supply from Central Junction Box (CJB) |
| 7 | CE417 (GY/BN) | TCS /Grade Assist button signal return |
| 8 | Empty | |
| 9 | Empty | |
| 10 | Empty | |
| 11 | Empty | |
| 12 | CTE53 (BU/OG) | BSIA solenoid ground |
