Transmission Range (TR) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the Transmission Range (TR) sensor electrical connector.

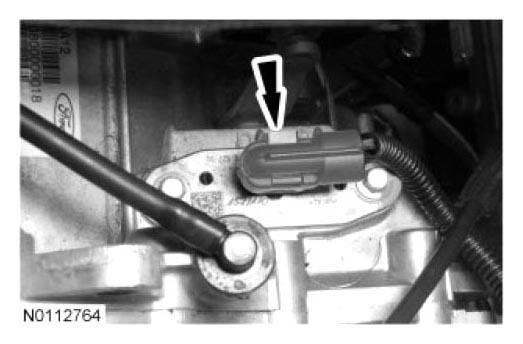

    Fig 1: Locating Transmission Range Sensor Electrical Connector
    G06939517Courtesy of FORD MOTOR CO.
  2. Remove the 2 TR  sensor bolts and the TR  sensor.

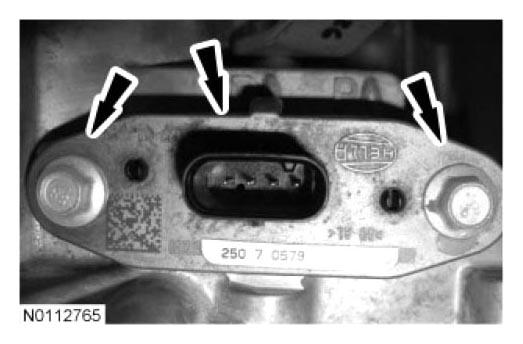

    Fig 2: Locating TR Sensor Bolts
    G06939518Courtesy of FORD MOTOR CO.
