Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

Install the TR sensor and the 2 TR sensor bolts.
- Tighten to 10 Nm (89 lb-in).

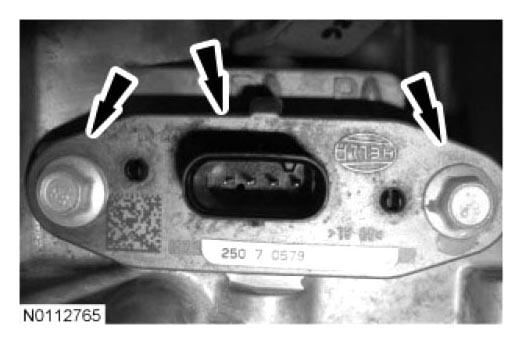

  Fig 1: Locating TR Sensor Bolts
  Courtesy of FORD MOTOR CO.
Connect the TR sensor electrical connector.

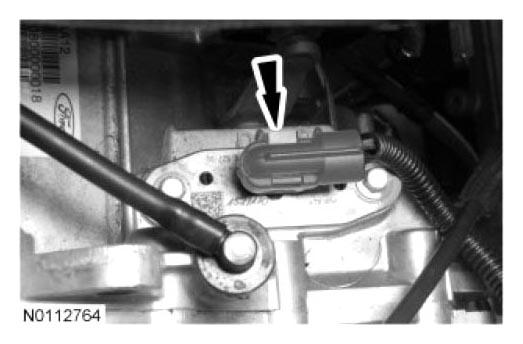

Fig 2: Locating Transmission Range Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Adjust the selector lever cable. For additional information, Refer to AUTOMATIC TRANSAXLE/TRANSMISSION EXTERNAL CONTROLS .
Re-calibrate the TR sensor. For additional information, refer to TRANSMISSION CONTROL MODULE (TCM) ADAPTIVE LEARNING .
Verify the vehicle starts in PARK and NEUTRAL only.
