Transmission Control Module (TCM): Removal

WARNING: This page is about a different variant/trim than selected.

Remove the battery and battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the Air Cleaner (ACL) and the outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
Disconnect the wiring harness from the ACL assembly bracket.

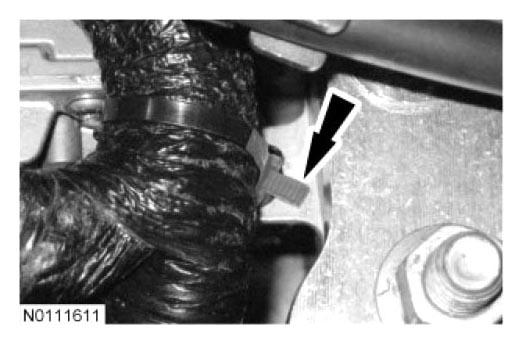

Fig 1: Locating Wiring Harness From ACL Assembly Bracket
Courtesy of FORD MOTOR CO.
Remove the battery tray bracket nuts, selector lever cable bracket bolt and the battery tray bracket.

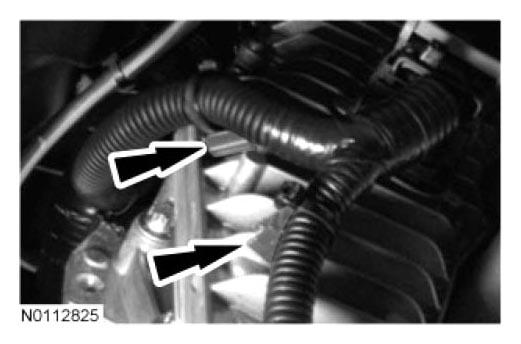

Fig 2: Locating Selector Lever Cable Bracket Bolt And Battery Tray Bracket Nuts
Courtesy of FORD MOTOR CO.
Remove the wiring harness from the transaxle housing.

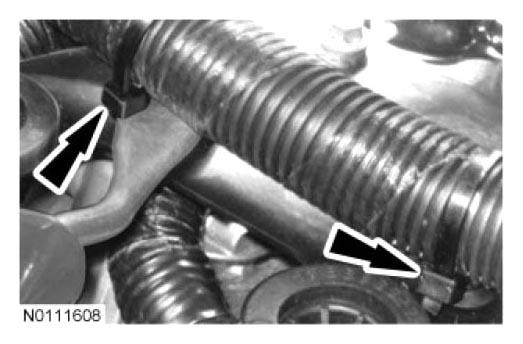

Fig 3: Locating Wiring Harness From Transaxle Housing
Courtesy of FORD MOTOR CO.
Detach the wiring harness clips from the Transmission Control Module (TCM).

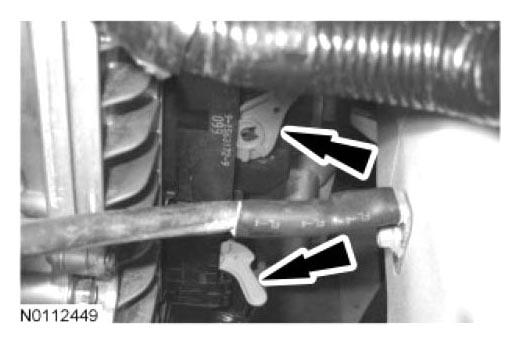

Fig 4: Locating Wiring Harness Clips
Courtesy of FORD MOTOR CO.
Disconnect the 2 TCM electrical connectors.

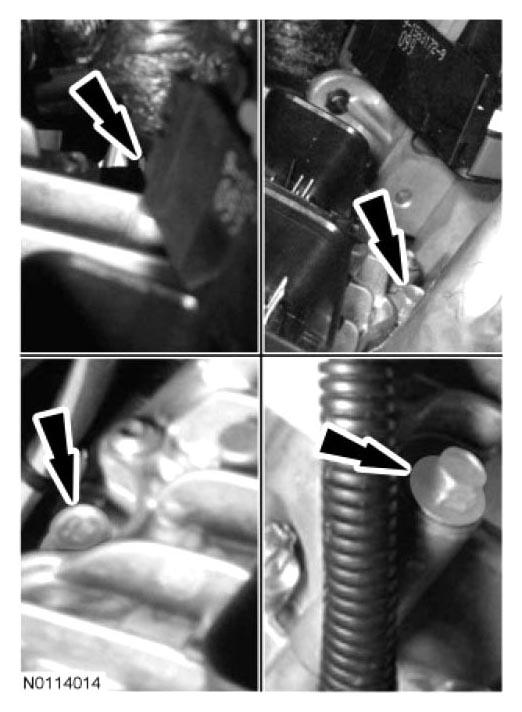

Fig 5: Locating TCM Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the 4 bolts from the TCM .

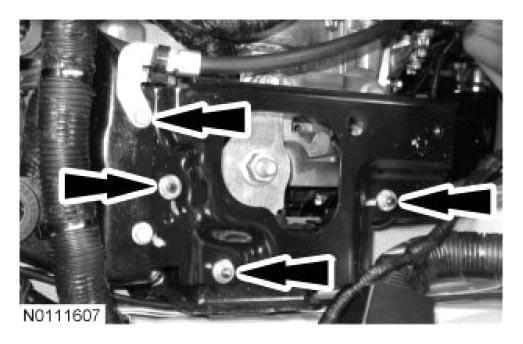

Fig 6: Locating TCM Bolts
Courtesy of FORD MOTOR CO.
Using a suitable flat blade screwdriver, carefully pry the TCM free from the transaxle, at the location shown in illustration, and remove the TCM , discard the O-rings.

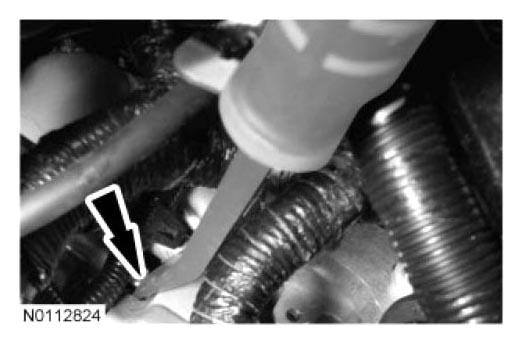

Fig 7: Prying TCM From Transaxle Using Suitable Flat Blade Screwdriver
Courtesy of FORD MOTOR CO.
