Transaxle Vent: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery and battery tray. For additional Information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the Air Cleaner (ACL) assembly and the outlet pipe. For additional Information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  3. Remove the vent assembly end from the cooling fan housing and position it aside.

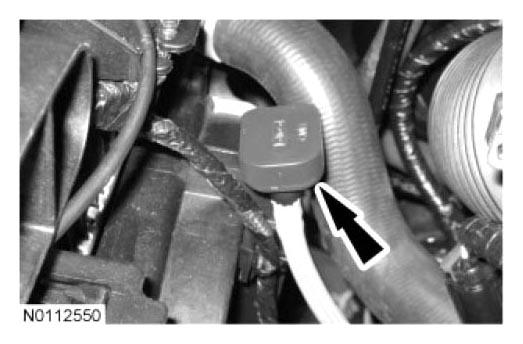

    Fig 1: Locating Transaxle Vent Hose From Cooling Fan Housing
    G06939500Courtesy of FORD MOTOR CO.
  4. Remove the vent assembly from the transaxle.

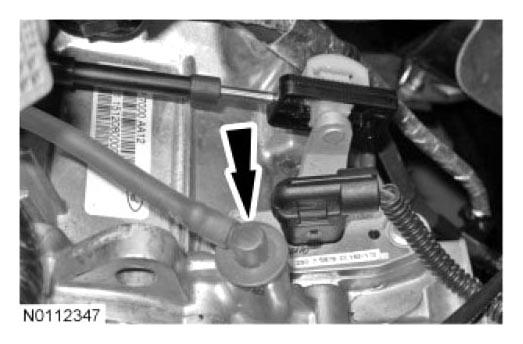

    Fig 2: Locating Vent Assembly
    G06939501Courtesy of FORD MOTOR CO.
