Transaxle Vent: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the vent transaxle bore for damage or debris. Clean or repair as needed.
  2. Install the vent assembly in the transaxle bore.

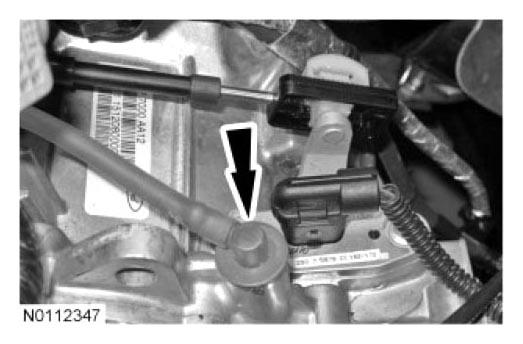

    Fig 1: Locating Vent Assembly
    G06939502Courtesy of FORD MOTOR CO.
  3. Install the vent assembly end onto the cooling fan housing.
    NOTE: Make sure the transaxle vent hose is properly routed or damage can occur.

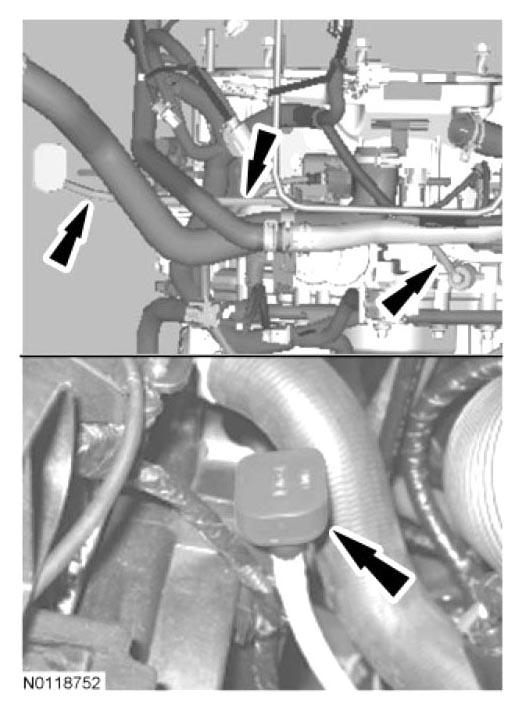

    Fig 2: Locating Vent Assembly End On Cooling Fan Housing
    G06939503Courtesy of FORD MOTOR CO.
  4. Install the ACL  assembly and outlet pipe. For additional Information, refer to INTAKE AIR DISTRIBUTION AND FILTERING .
  5. Install the battery tray and battery. For additional Information, refer to BATTERY, MOUNTING AND CABLES .
