Roll Restrictor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove the roll restrictor bolts and the roll restrictor.

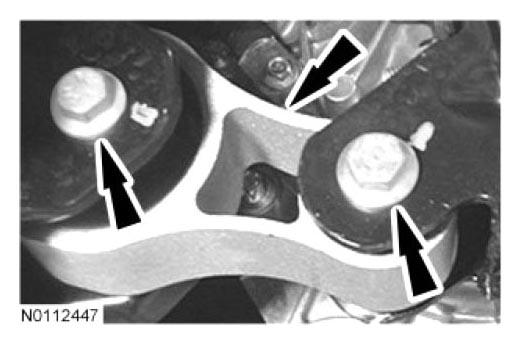

    Fig 1: Locating Roll Restrictor Bolts
    G06939483Courtesy of FORD MOTOR CO.
