Roll Restrictor: Installation

WARNING: This page is about a different variant/trim than selected.

Install the roll restrictor and the roll restrictor bolts.
NOTE: The bolts are different lengths, make sure the bolts are in the correct location using the marks made during removal.
1. Tighten to 70 Nm (52 lb-ft).
2. Tighten to 48 Nm (35 lb-ft).

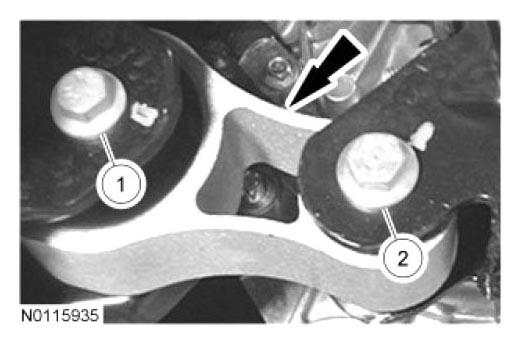

  Fig 1: Locating Transaxle Roll Restrictor Bolts
  Courtesy of FORD MOTOR CO.
