Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
  2. Remove and discard the heat tape from the Output Shaft Speed (OSS) sensor and electrical connector.
    Fig 1: Locating Output Shaft Speed Sensor
    G06939474Courtesy of FORD MOTOR CO.
  3. Disconnect the OSS  sensor electrical connector.

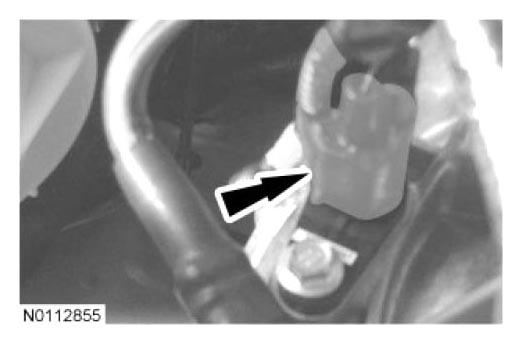

    Fig 2: Locating OSS Sensor Electrical Connector
    G06939475Courtesy of FORD MOTOR CO.
  4. Remove the OSS  sensor bolt and OSS  sensor.

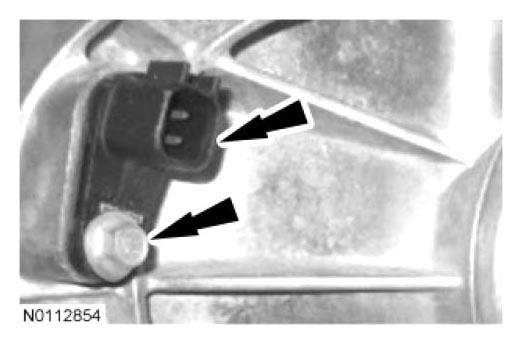

    Fig 3: Locating OSS Sensor Bolt
    G06939476Courtesy of FORD MOTOR CO.
