Outer Input Shaft Case Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clutch engagement system. For additional information, refer to CLUTCH ENGAGEMENT SYSTEM  in this information.
  2. Remove the guide tube bolts.

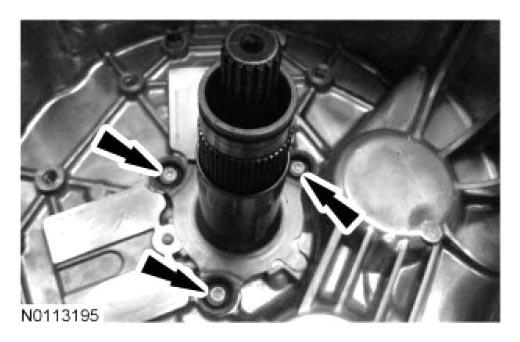

    Fig 1: Locating Guide Tube Bolts
    G06939452Courtesy of FORD MOTOR CO.
  3. Remove the guide tube.

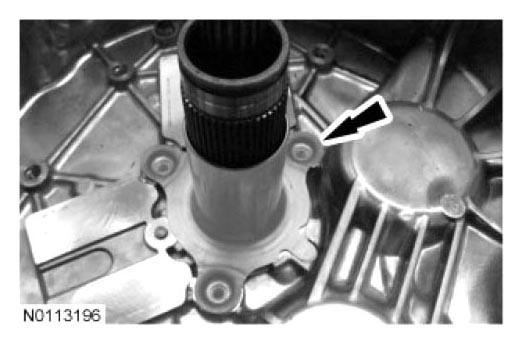

    Fig 2: Locating Guide Tube
    G06939453Courtesy of FORD MOTOR CO.
  4. Using the special tools, remove and discard the outer input shaft case seal.

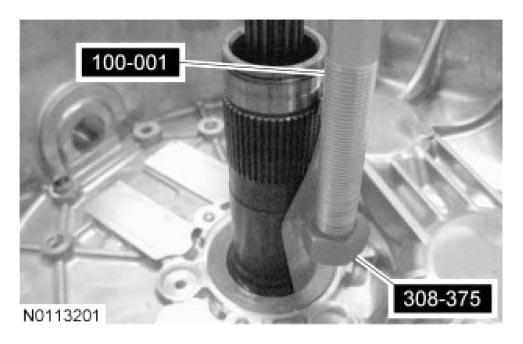

    Fig 3: Removing Outer Input Shaft Case Seal Using Special Tools
    G06939454Courtesy of FORD MOTOR CO.
