Outer Input Shaft Case Seal: Installation

WARNING: This page is about a different variant/trim than selected.

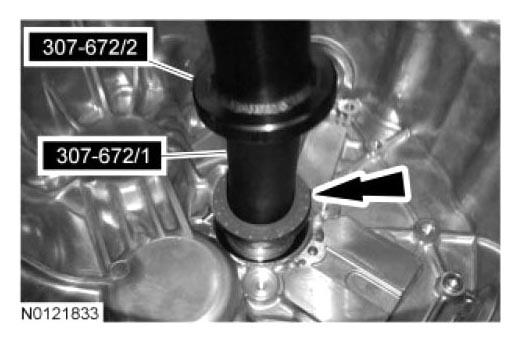

Using the special tools, install the new outer input shaft case seal.

Fig 1: Installing Outer Input Shaft Case Seal Using Special Tools
Courtesy of FORD MOTOR CO.

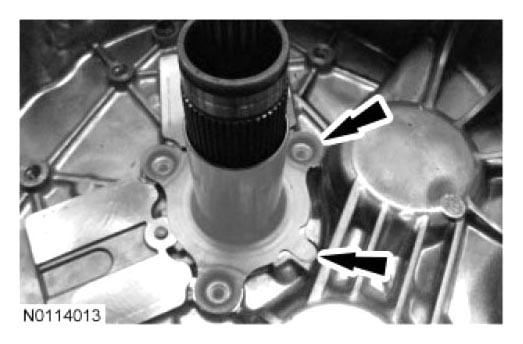

Using the locating tab on the guide tube, install the guide tube.

Fig 2: Locating Guide Tube
Courtesy of FORD MOTOR CO.

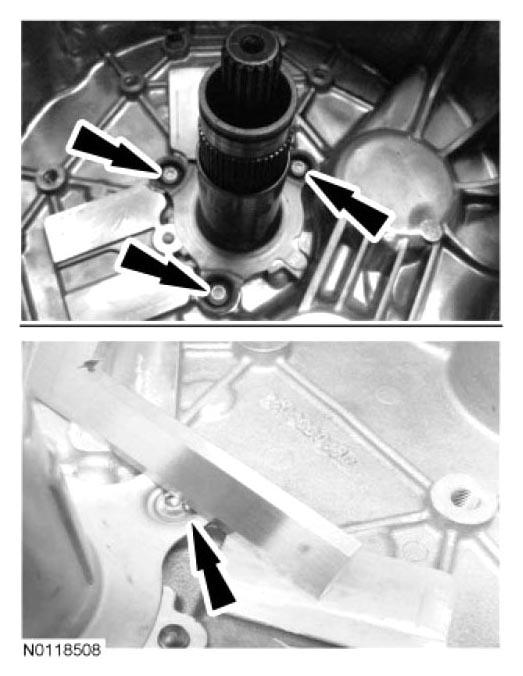

Install the guide tube bolts.
NOTE: The guide tube bolts must not project beyond the mounting surface of the clutch engagement levers.
- Tighten to 8 Nm (71 lb-in).

  Fig 3: Locating Guide Tube Bolts
  Courtesy of FORD MOTOR CO.
Install the clutch engagement system. For additional information, refer to CLUTCH ENGAGEMENT SYSTEM in this information.
Install the clutch. For additional information, refer to CLUTCH in this information.
Install the transaxle into the vehicle. For additional information, refer to TRANSAXLE in this information.
