Manual Control Lever Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transaxle. For additional information, refer to TRANSAXLE  in this information.
  2. Remove the manual control lever bolt and discard and remove the manual control lever.

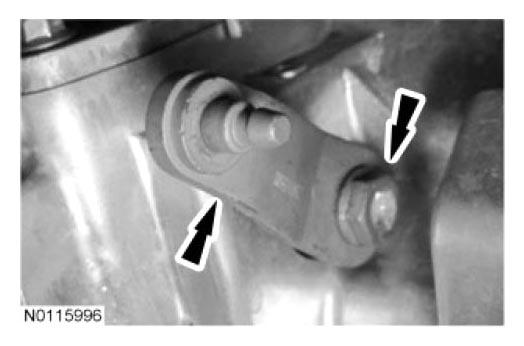

    Fig 1: Locating Manual Control Lever Bolt
    G06939469Courtesy of FORD MOTOR CO.
  3. Install the special tool.

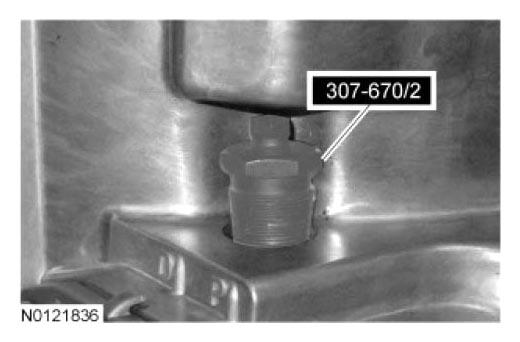

    Fig 2: Identifying Special Tool
    G06939470Courtesy of FORD MOTOR CO.
  4. Using the special tool and a suitable tool, apply slight pressure to the special tool, remove the manual control lever seal and discard.

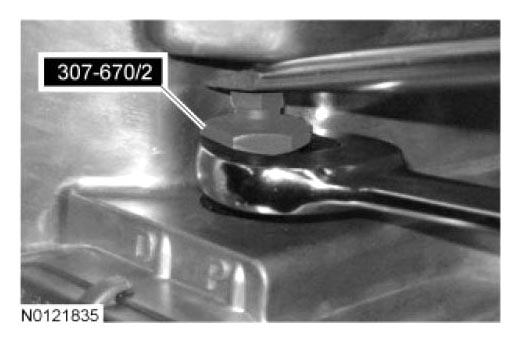

    Fig 3: Removing Manual Control Lever Seal Using Special Tool
    G06939471Courtesy of FORD MOTOR CO.
  5. Inspect the transaxle case bore for debris or damage. Clean and/or repair as needed.
