Manual Control Lever Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.

Using the special tools, install the new manual control lever shaft seal.

Fig 1: Installing Manual Control Lever Shaft Seal Using Special Tools
Courtesy of FORD MOTOR CO.
Install the manual control lever and the new manual control lever bolt.
- Tighten to 26 Nm (19 lb-ft).

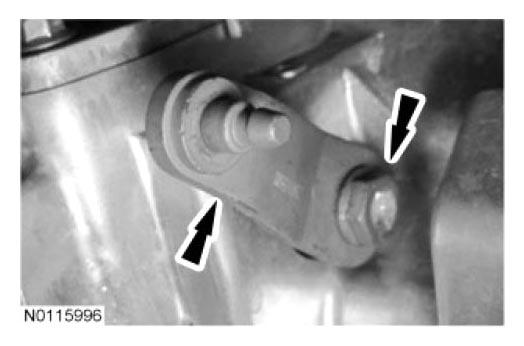

  Fig 2: Locating Manual Control Lever Bolt
  Courtesy of FORD MOTOR CO.
Install the transaxle. For additional information, refer to TRANSAXLE in this information.
