Input Shaft Speed Sensor - No. 2: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the input shaft speed sensor electrical connector.

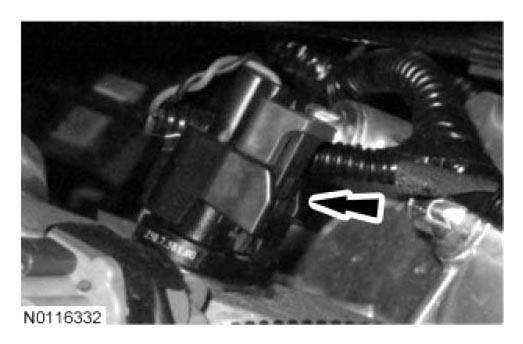

    Fig 1: Locating Input Shaft Speed Sensor Electrical Connector
    G06939463Courtesy of FORD MOTOR CO.
  2. Remove the input shaft speed sensor.
    1. Remove the input shaft speed sensor bolt.
    2. Remove the input shaft speed sensor.
    3. Remove the input shaft speed sensor shim.

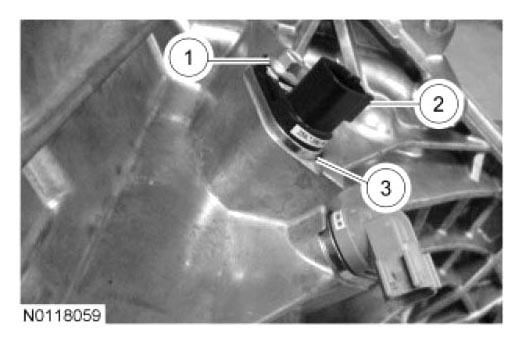

      Fig 2: Identifying Input Shaft Speed Sensor Shim And Bolt
      G06939464Courtesy of FORD MOTOR CO.
