Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS CHART

G06939636
Puller, Bearing
205-D064

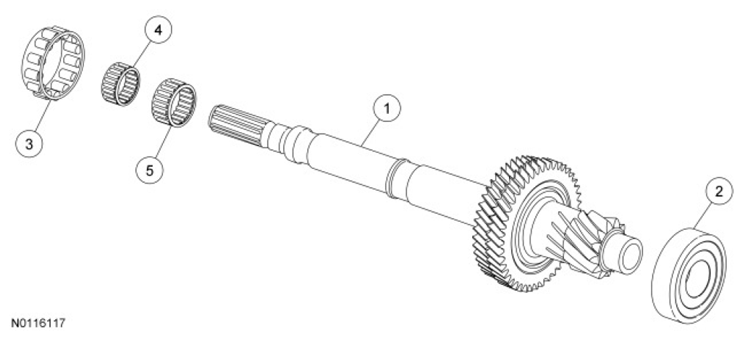

Fig 1: Identifying Inner Input Shaft Components
G06939637Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7717 Inner input shaft
2 7B412 Radial bearing
3 7B412 Roller bearing
4 7M150 Needle bearing
5 7M150 Needle bearing
