Input Shaft - Inner: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the inner input shaft needle bearing.
  2. Remove the inner input shaft needle bearing.
  3. Remove the inner input shaft roller bearing.
  4. Using the special tools and a press, remove the inner input shaft radial bearing.

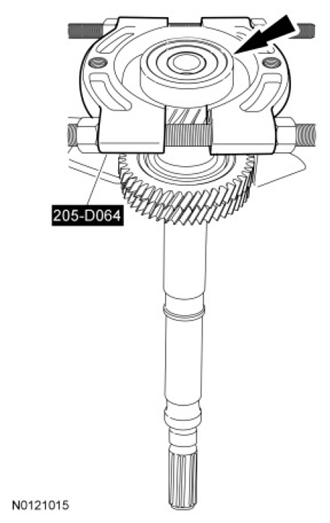

    Fig 1: Removing Inner Input Shaft Radial Bearing Using Special Tools
    G06939638Courtesy of FORD MOTOR CO.
