Input Shaft - Inner: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Inspect the inner input shaft for wear or damage, replace as needed.
  2. Using the special tools and a press, install the inner input shaft radial bearing.

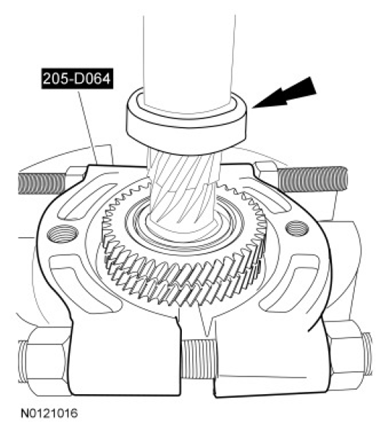

    Fig 1: Installing Inner Input Shaft Radial Bearing Using Special Tools
    G06939639Courtesy of FORD MOTOR CO.
  3. Install the inner input shaft roller bearing.
  4. Install the inner input shaft needle bearing.
  5. Install the inner input shaft needle bearing.
