Inner Input Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transaxle. For additional information, refer to TRANSAXLE .
  2. Remove the clutch. For additional information, refer to CLUTCH .
  3. Using the special tools, remove and discard the inner input shaft seal.

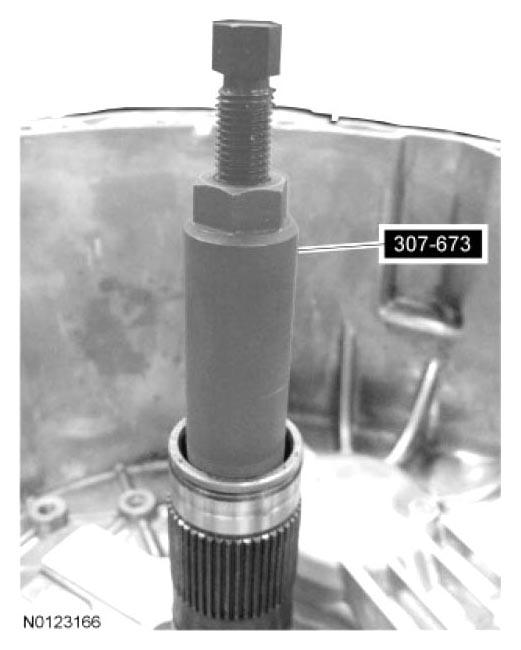

    Fig 1: Removing Inner Input Shaft Seal Using Special Tools
    G06939447Courtesy of FORD MOTOR CO.
