Inner Input Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using the special tools, install the new inner input shaft seal.

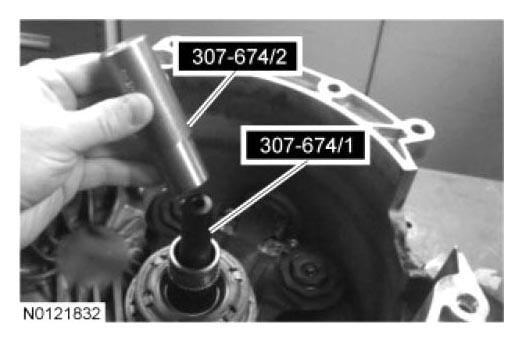

    Fig 1: Installing Inner Input Shaft Seal Using Special Tools
    G06939448Courtesy of FORD MOTOR CO.
  2. Install the clutch. For additional information, refer to CLUTCH .
  3. Install the transaxle into the vehicle. For additional information, refer to TRANSAXLE .
