Halfshaft Seal - RH: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the RH front wheel and tire. For additional information, refer to WHEELS & TIRES .
Loosen the RH top strut mount nuts.

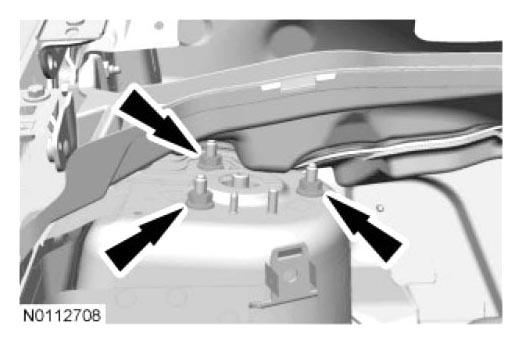

Fig 1: Locating LH/RH Top Strut Nuts
Courtesy of FORD MOTOR CO.
Remove the brake hose retainer bolt and the brake hose retainer from the RH strut.

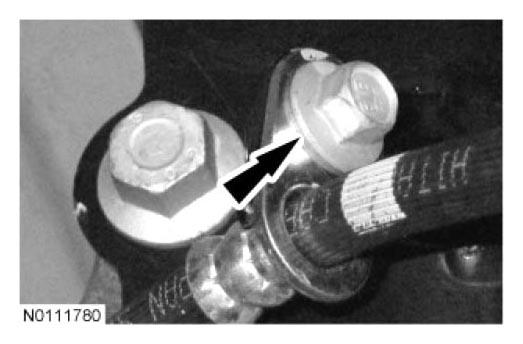

Fig 2: Locating Brake Hose Retainer Bolt
Courtesy of FORD MOTOR CO.
Remove and discard the RH lower control arm knuckle bolt and nut.

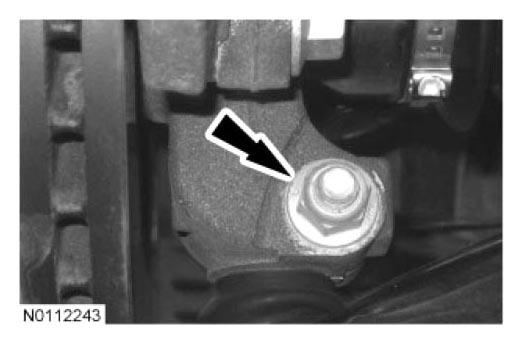

Fig 3: Locating RH Lower Control Arm Knuckle Bolt
Courtesy of FORD MOTOR CO.
Separate the RH ball joint from the knuckle.
Remove and discard the center bearing bracket and nuts and remove the center bearing bracket.

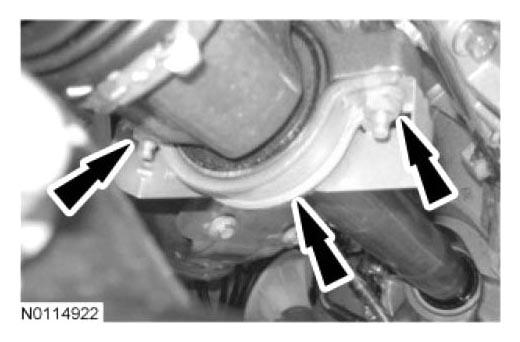

Fig 4: Locating Center Bearing Bracket Nuts
Courtesy of FORD MOTOR CO.
Detach the RH intermediate shaft assembly from the transaxle and position aside. Support the RH intermediate shaft assembly.
Using a suitable tool. remove and discard the RH halfshaft seal.

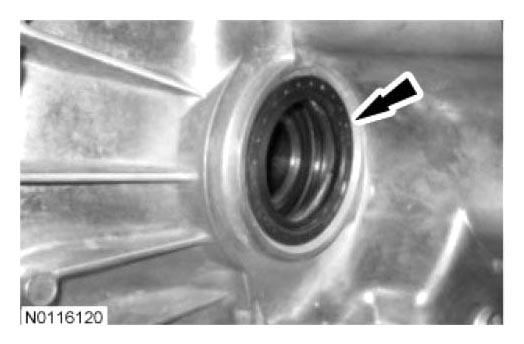

Fig 5: Locating RH Halfshaft Seal
Courtesy of FORD MOTOR CO.
