Halfshaft Seal - RH: Installation

WARNING: This page is about a different variant/trim than selected.

Install the RH halfshaft seal onto the special tool.

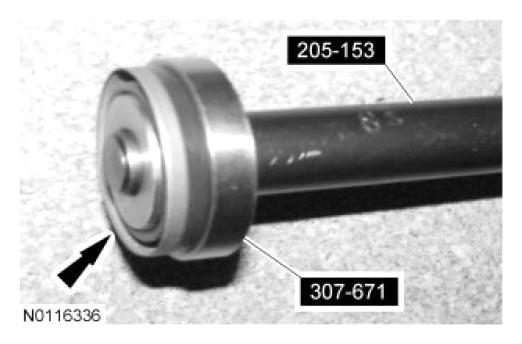

Fig 1: Installing RH Halfshaft Seal On Special Tool
Courtesy of FORD MOTOR CO.
Using the special tools, install the RH halfshaft seal.

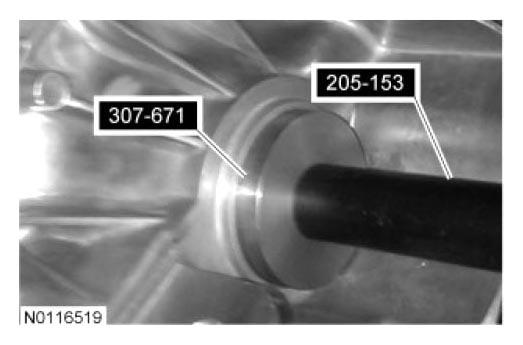

Fig 2: Installing RH Halfshaft Seal Using Special Tools
Courtesy of FORD MOTOR CO.
Using the RH halfshaft seal protector provided with the new RH halfshaft seal, install the RH intermediate shaft assembly partially into the transaxle.

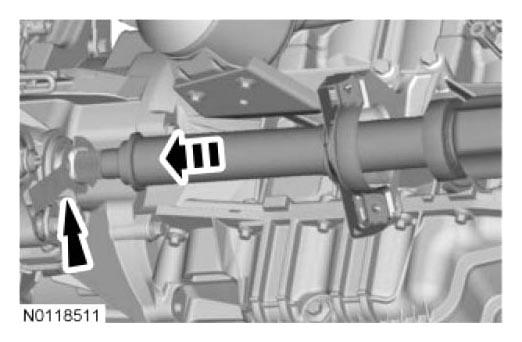

Fig 3: Installing RH Intermediate Shaft Assembly Into Transaxle
Courtesy of FORD MOTOR CO.
Remove the RH halfshaft seal protector and install the RH intermediate shaft assembly into the transaxle.

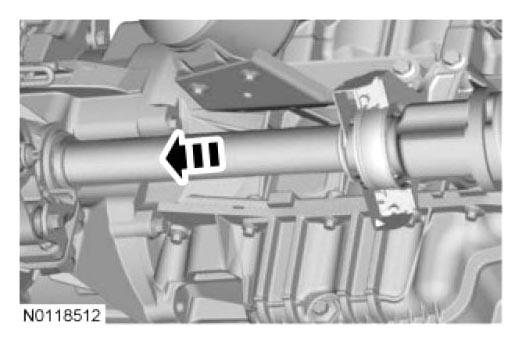

Fig 4: Installing RH Intermediate Shaft Assembly Into Transaxle
Courtesy of FORD MOTOR CO.
Install the new center bearing bracket and new nuts. Tighten the nuts in 2 stages.
- Stage 1: Tighten to 6 Nm (53 lb-in).
- Stage 2: Tighten to 25 Nm (18 lb-ft).

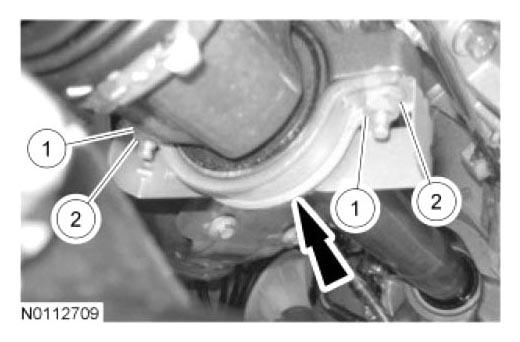

  Fig 5: Locating Center Bearing Bracket Nuts
  Courtesy of FORD MOTOR CO.
Install the RH ball joint into the knuckle.
Install the new RH lower control arm knuckle bolt and nut.
- Tighten to 48 Nm (35 lb-ft).

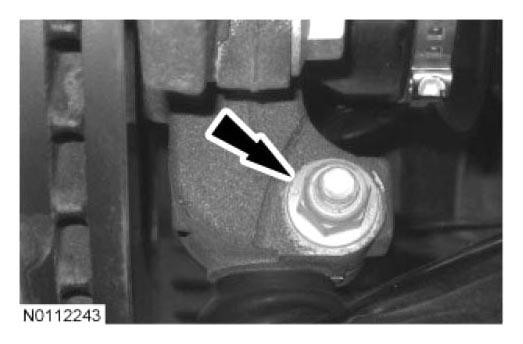

  Fig 6: Locating RH Lower Control Arm Knuckle Bolt
  Courtesy of FORD MOTOR CO.
Install the brake hose retainer and bolt on the RH strut.
- Tighten to 25 Nm (18 lb-ft).

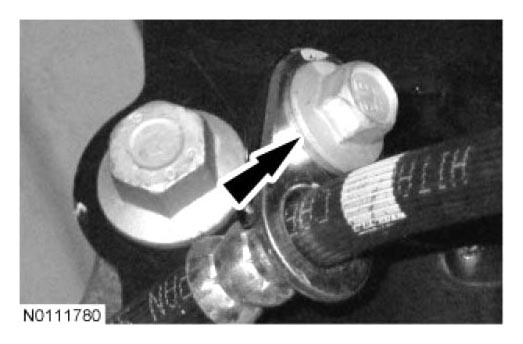

  Fig 7: Locating Brake Hose Retainer Bolt
  Courtesy of FORD MOTOR CO.
Tighten the RH top strut mount nuts.
- Tighten to 48 Nm (35 lb-ft).

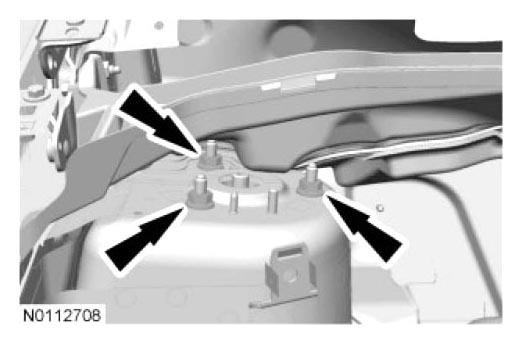

  Fig 8: Locating LH/RH Top Strut Nuts
  Courtesy of FORD MOTOR CO.
Install the RH front wheel and tire. For additional information, refer to WHEELS & TIRES .
Fill the transmission fluid. For additional information, refer to TRANSMISSION DRAINING AND FILLING in this information.
