Halfshaft Seal - LH: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the front wheel and tire. For additional information, refer to WHEELS & TIRES .
Loosen the LH top strut mount nuts.
NOTE: RH shown in illustration, LH similar.

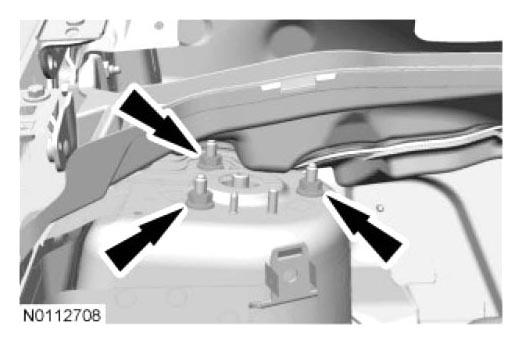

Fig 1: Locating LH/RH Top Strut Nuts
Courtesy of FORD MOTOR CO.
Remove the drain plug and drain the transmission fluid.

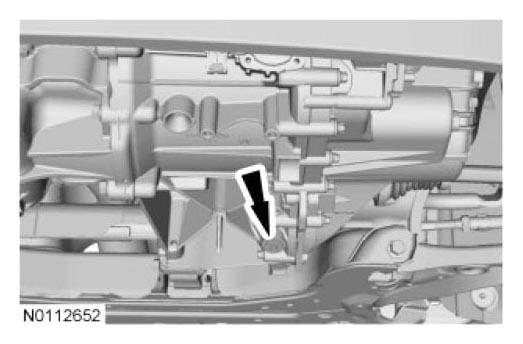

Fig 2: Locating Drain Plug
Courtesy of FORD MOTOR CO.
Install the drain plug.
- Tighten to 43 Nm (32 lb-ft).

  Fig 3: Locating Drain Plug
  Courtesy of FORD MOTOR CO.
Remove the brake hose retainer bolt and the brake hose retainer from the LH strut.

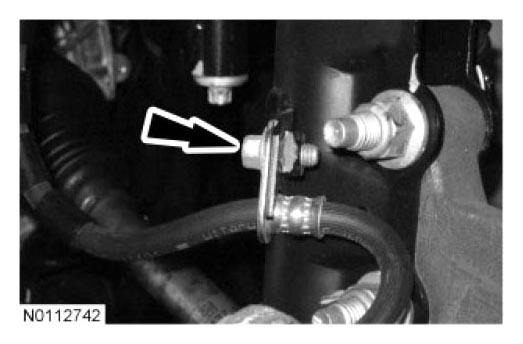

Fig 4: Locating Brake Hose Retainer Bolt
Courtesy of FORD MOTOR CO.
Remove and discard the LH lower control arm knuckle bolt and nut.

Fig 5: Locating LH Lower Control Arm Knuckle Bolt
Courtesy of FORD MOTOR CO.
Separate the LH ball joint from the knuckle.
Detach the LH halfshaft assembly from the transaxle and position aside. Support the LH halfshaft assembly.
Using a suitable tool, remove and discard the LH halfshaft seal.

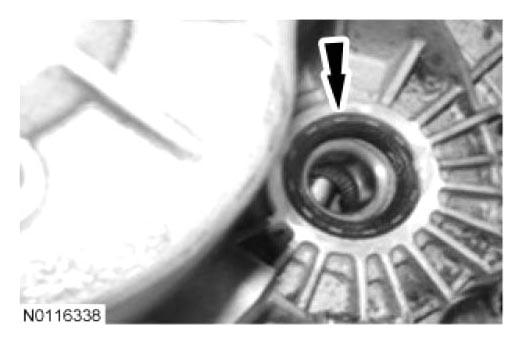

Fig 6: Locating LH Halfshaft Seal
Courtesy of FORD MOTOR CO.
