Halfshaft Seal - LH: Installation

WARNING: This page is about a different variant/trim than selected.

Install the LH halfshaft seal onto the special tool.

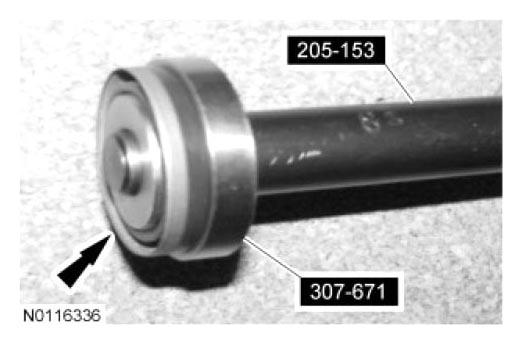

Fig 1: Installing LH Halfshaft Seal On Special Tool
Courtesy of FORD MOTOR CO.
Using the special tools, install the LH halfshaft seal.

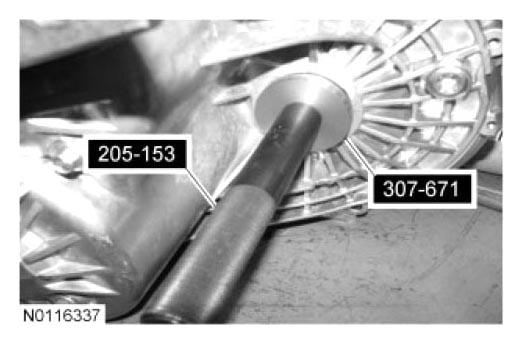

Fig 2: Installing LH Halfshaft Seal Using Special Tools
Courtesy of FORD MOTOR CO.
Using the LH halfshaft seal protector provided with the new LH halfshaft seal, install the LH halfshaft partially into the transaxle.

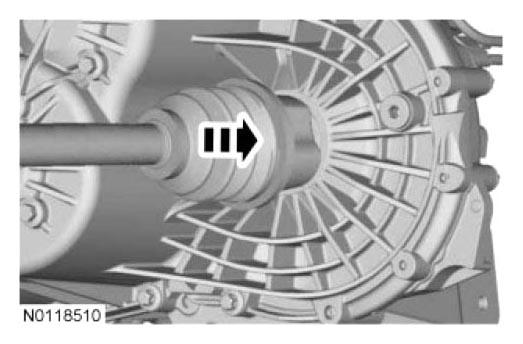

Fig 3: Installing LH Halfshaft Into Transaxle
Courtesy of FORD MOTOR CO.
Remove the LH halfshaft seal protector and install the LH halfshaft into the transaxle.

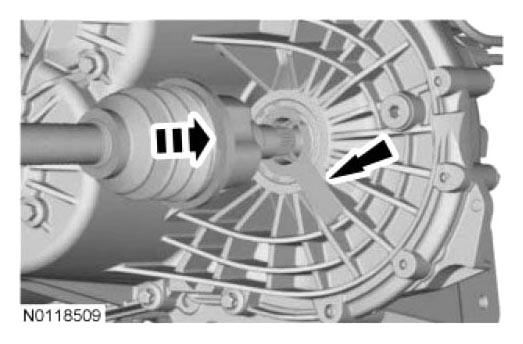

Fig 4: Installing LH Halfshaft Into Transaxle
Courtesy of FORD MOTOR CO.
Install the LH ball joint into the knuckle.
Install the new LH lower control arm knuckle bolt and nut.
- Tighten to 48 Nm (35 lb-ft).

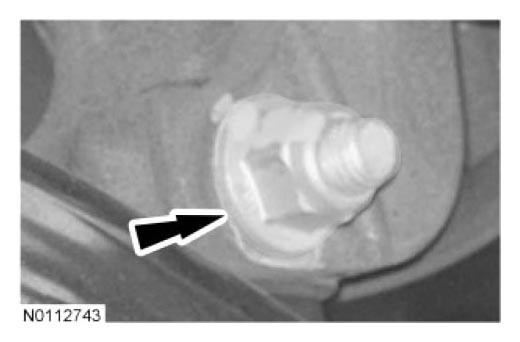

  Fig 5: Locating LH Lower Control Arm Knuckle Bolt
  Courtesy of FORD MOTOR CO.
Install the brake hose retainer and bolt on the LH strut.
- Tighten to 25 Nm (18 lb-ft).

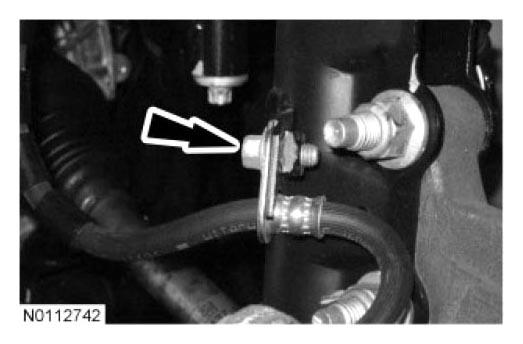

  Fig 6: Locating Brake Hose Retainer Bolt
  Courtesy of FORD MOTOR CO.
Tighten the LH upper strut mount nuts.
NOTE: RH shown in illustration, LH similar.
- Tighten to 48 Nm (35 lb-ft).

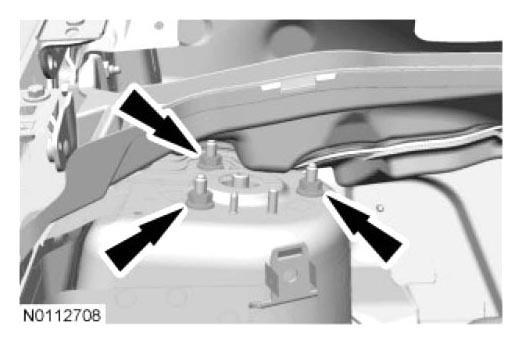

  Fig 7: Locating LH/RH Top Strut Nuts
  Courtesy of FORD MOTOR CO.
Install the front wheel and tire. For additional information, refer to WHEELS & TIRES .
Fill the transaxle with transmission fluid. For additional information, refer to TRANSMISSION DRAINING AND FILLING in this information.
