Removal And Installation: Differential: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. A Using the special tools, remove and discard the differential bearings.
    NOTE: Take care not to damage the differential impulse ring.

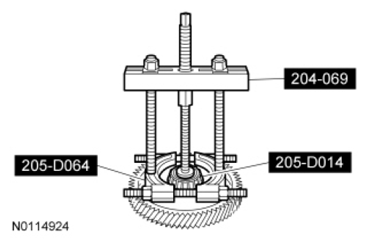

    Fig 1: Removing Differential Bearings Using Special Tools
    G06939625Courtesy of FORD MOTOR CO.
  2. Using a 1500W heat gun, slightly heat the impulse ring. Remove the impulse ring.
  3. Remove and discard the differential ring gear bolts. Lightly tap the ring gear to separate it from the differential case.
  4. Clean all parts in clean solvent and dry with compressed air.
