Removal And Installation: Differential: Assembly

WARNING: This page is about a different variant/trim than selected.

Inspect differential parts for damage or wear. Repair or replace as needed.
Install the differential ring gear onto the differential case.
Install the new differential ring gear bolts.
- Using the illustration, tighten to 85 Nm (63 lb-ft) in a star pattern.

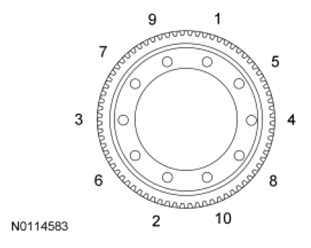

  Fig 1: Identifying Differential Ring Gear Bolts In Tightening Sequence
  Courtesy of FORD MOTOR CO.
Using a 1500W heat gun, slightly heat the differential impulse ring. Install it onto the differential assembly.
NOTE: Make sure the differential impulse ring is fully seated and flush on the differential.
Using the special tools, install the new differential bearings.
NOTE: Take care not to damage the differential impulse ring.

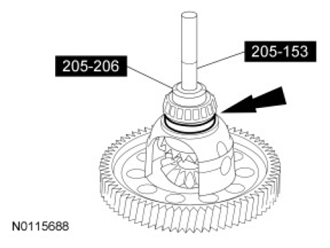

Fig 2: Installing Differential Bearings Using Special Tools
Courtesy of FORD MOTOR CO.
