Differential Shim: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Using the special tools, remove the clutch housing differential bearing race and shim.

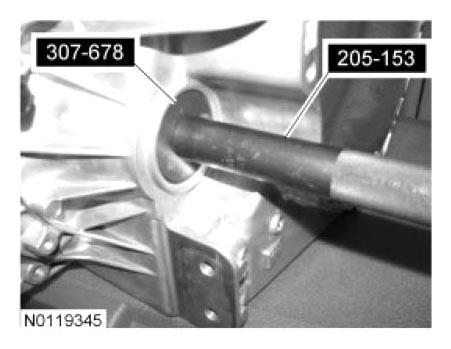

    Fig 1: Removing Clutch Housing Differential Bearing Race And Shim
    G06939633Courtesy of FORD MOTOR CO.
