Differential Shim: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install the selected differential bearing shim. If the differential bearings, differential, clutch housing or transaxle case were replaced, refer to DIFFERENTIAL SHIM SELECTION  in this information.

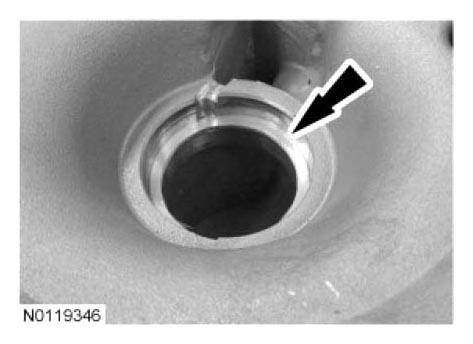

    Fig 1: Locating Differential Bearing Shim
    G06939634Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the differential bearing race.

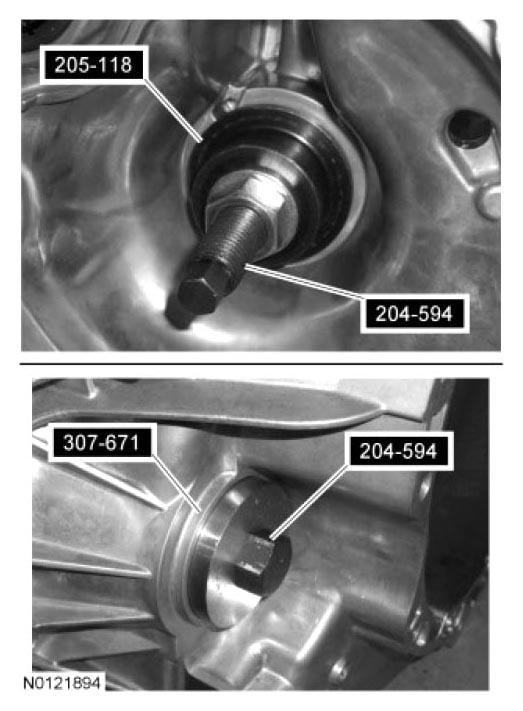

    Fig 2: Installing Differential Bearing Race Using Special Tools
    G06939635Courtesy of FORD MOTOR CO.
