Clutch Motor - No. 2: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Clean the area around the clutch motor to ensure no debris gets into the clutch motor pocket.
  2. Disconnect the clutch motor electrical connector.

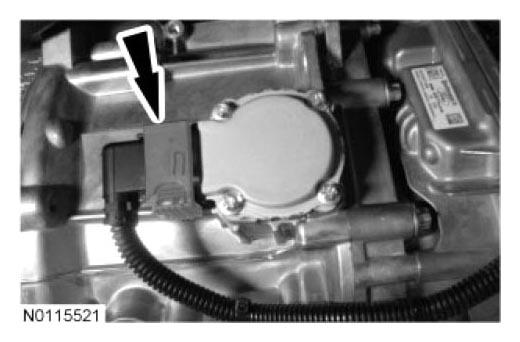

    Fig 1: Locating Clutch Motor Electrical Connector
    G06939331Courtesy of FORD MOTOR CO.
  3. Remove the 4 clutch motor bolts and the clutch motor.

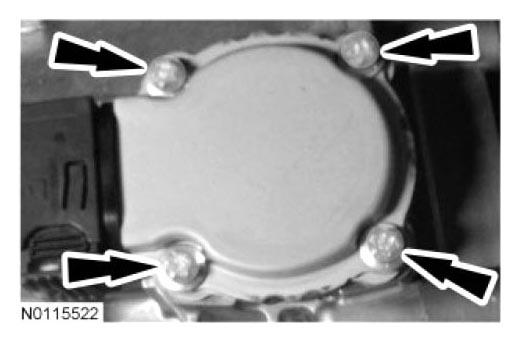

    Fig 2: Locating Clutch Motor Bolts
    G06939332Courtesy of FORD MOTOR CO.
