Clutch Motor - No. 2: Installation

WARNING: This page is about a different variant/trim than selected.

Inspect the clutch motor pocket for damage or debris. Clean or repair as needed.

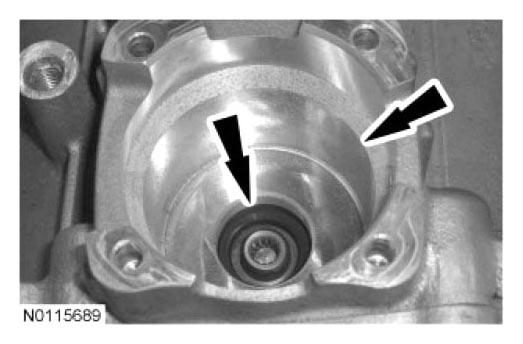

Fig 1: Locating Clutch Motor Pocket For Damage And Debris
Courtesy of FORD MOTOR CO.
Apply anti-seize to the clutch motor surfaces as shown in illustration.

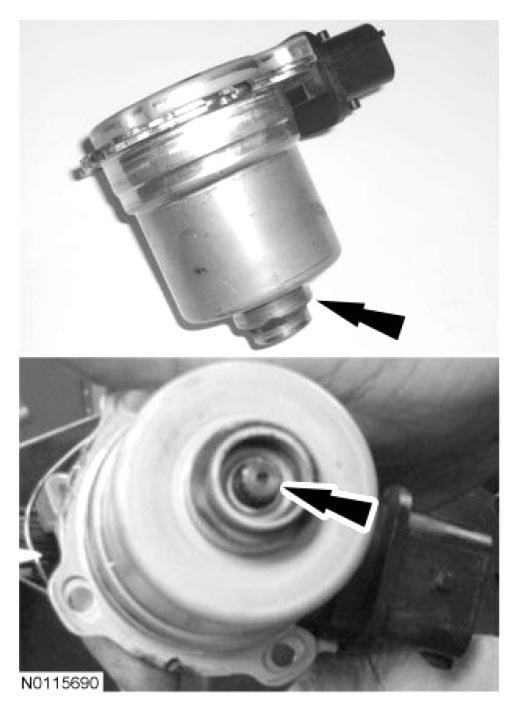

Fig 2: Locating Clutch Motor Surfaces
Courtesy of FORD MOTOR CO.
Apply anti-seize to the clutch actuator lever splines as shown in illustration.

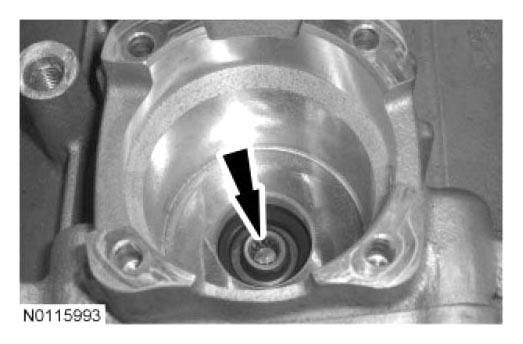

Fig 3: Locating Clutch Actuator Lever Splines
Courtesy of FORD MOTOR CO.
Install the clutch motor and the 4 clutch motor bolts.
NOTE: Clutch motor splines may need to be turned to ease installation.
- Tighten to 5 Nm (44 lb-in).

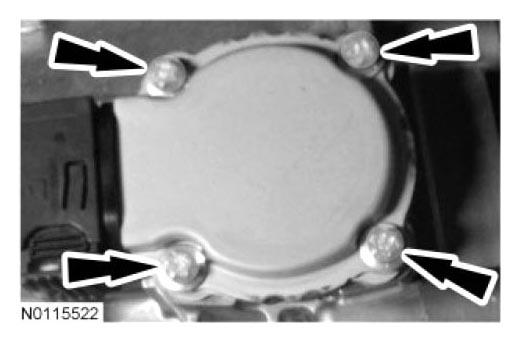

  Fig 4: Locating Clutch Motor Bolts
  Courtesy of FORD MOTOR CO.
Connect the clutch motor electrical connector.

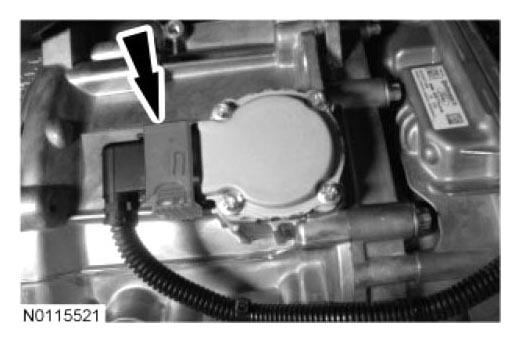

Fig 5: Locating Clutch Motor Electrical Connector
Courtesy of FORD MOTOR CO.
